DL_01

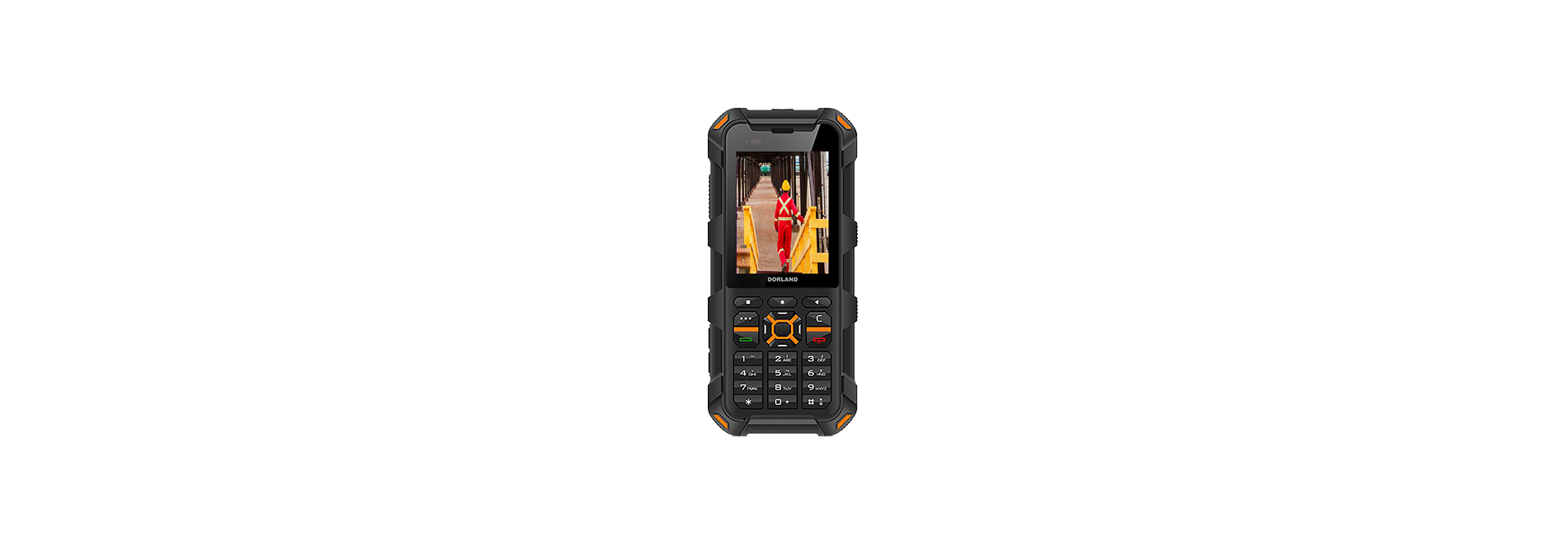

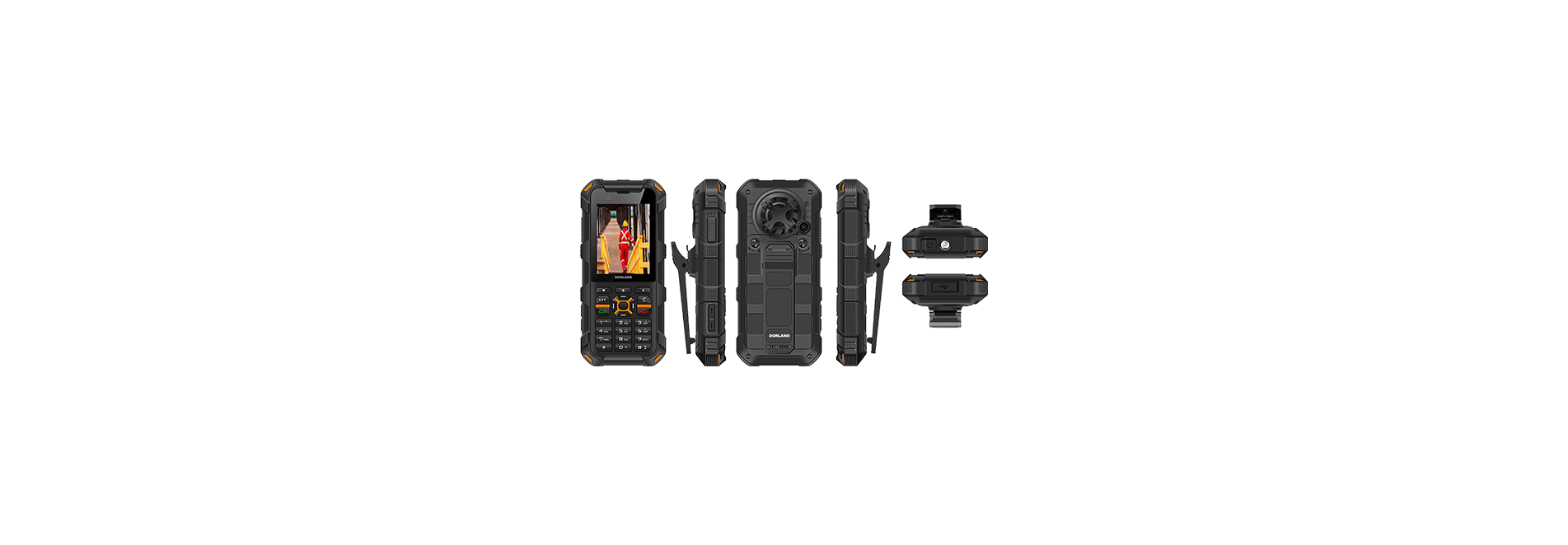

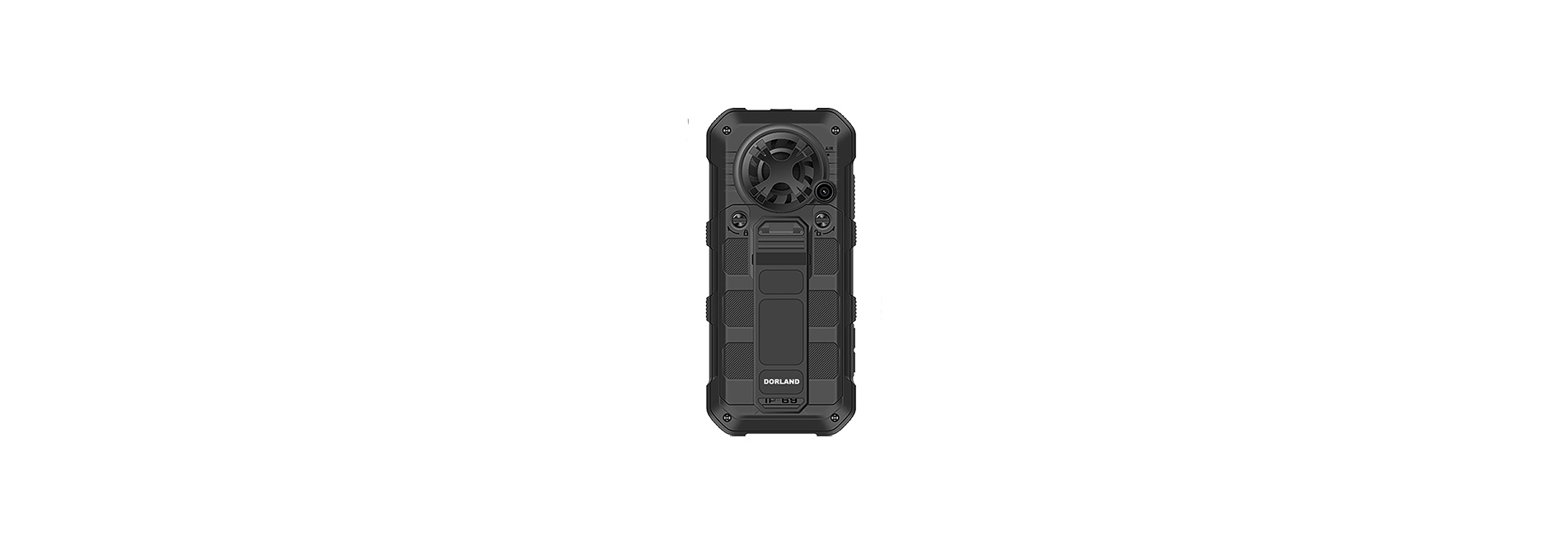

DORLAND Industrial Intrinsically Safe Mobile Phone DL_01

Marking:Ex ib IIC T4 Gb

Protection Grade:IP68

Battery:Removable 2100mAh li-polymer battery

Bluetooth:V4.2

Product Introduction
Technical Parameters
Product Certificate
Product Report

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe smartphone DL_01. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 2.4 inch screen, equipped with 200M pixel camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports Bluetooth，suitable for outdoor construction and pipeline inspection. It can cooperate with office, data acquisition and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, military, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Marking:

Ex ib IIC T4 Gb

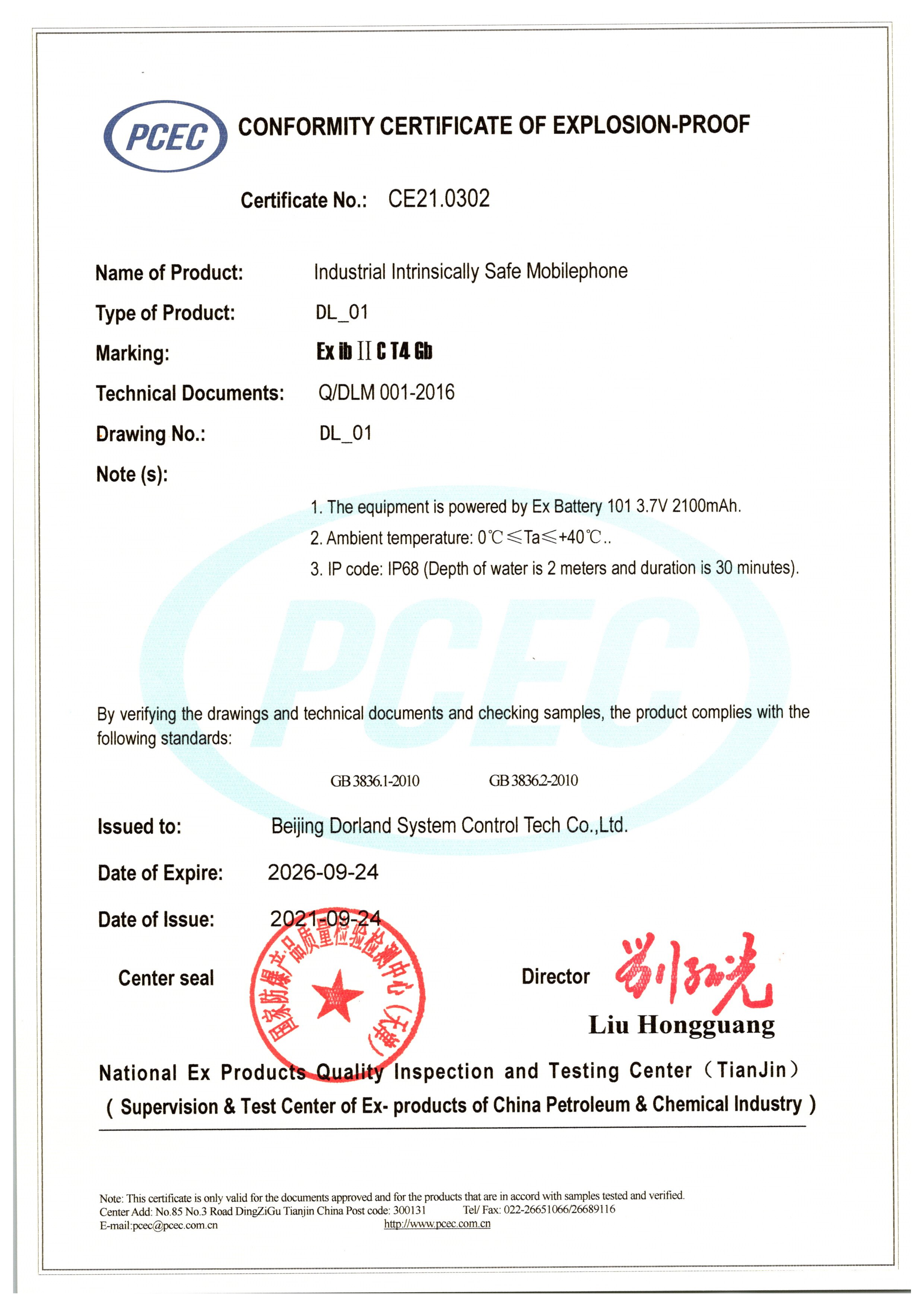

Certificate No.:

CE21.0302
Protection Grade:

IP68
SO:

Android 8.0 Go
Screen:

2.4 inch QVGA touch screen, 320*240px
Processor:

Mediatek MT6739 Cortex A53 quad core, 1.5GHz；GPU: PowerVR GE8100, 570MHz
RAM:

1GB RAM
ROM:

8GB ROM, support Micro SD card up to 64GB maximally
Camera:

Single camera: 2.0MP rear camera with flashlight
Battery:

Removable 2100mAh li-polymer battery
Positioning:

Support GPS/Beidou/GLONASS
NFC:

Optional, support ISO18092, ISO14443 A/B, ISO15693 protocols
Network Bands:

2G: GSM 850/900/1800/1900MHz 3G: WCDMA B1/B2/B5/B8; TDS(B34/39)+CDMA: BC0 1X EVDO 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE: B34/B38/B39/B40/B41
PoC function:

Support Zello, real PTT, Pocstar etc.
