EX Camera 03

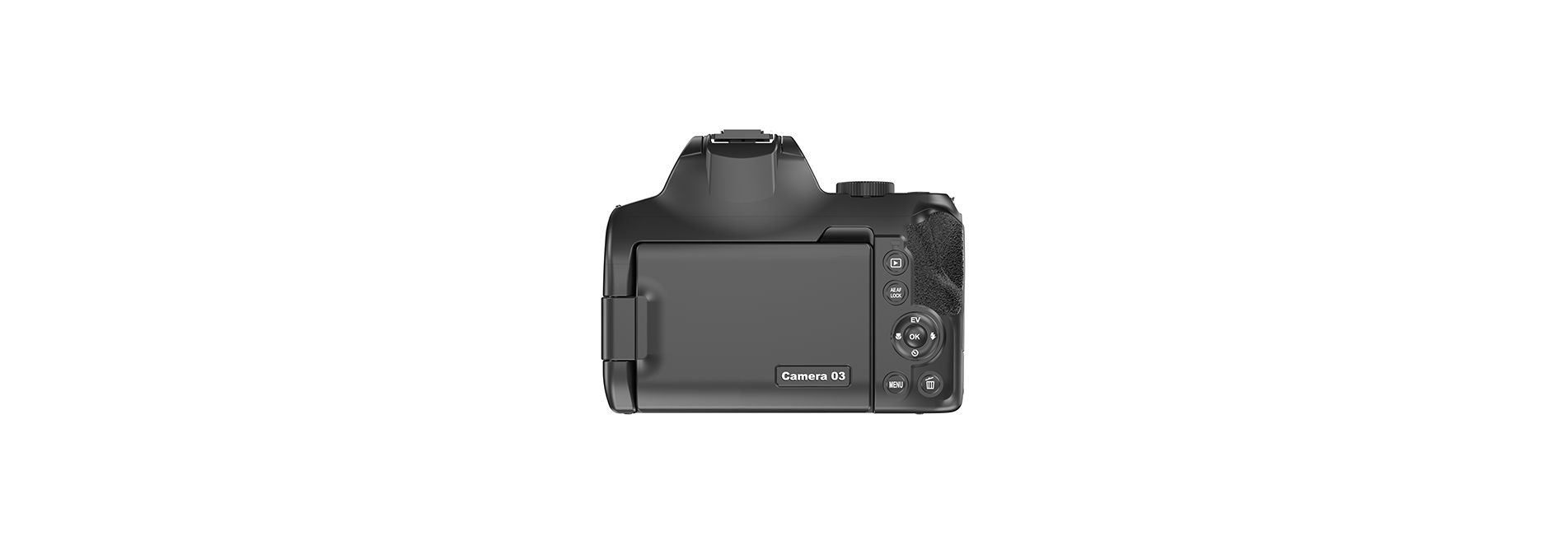

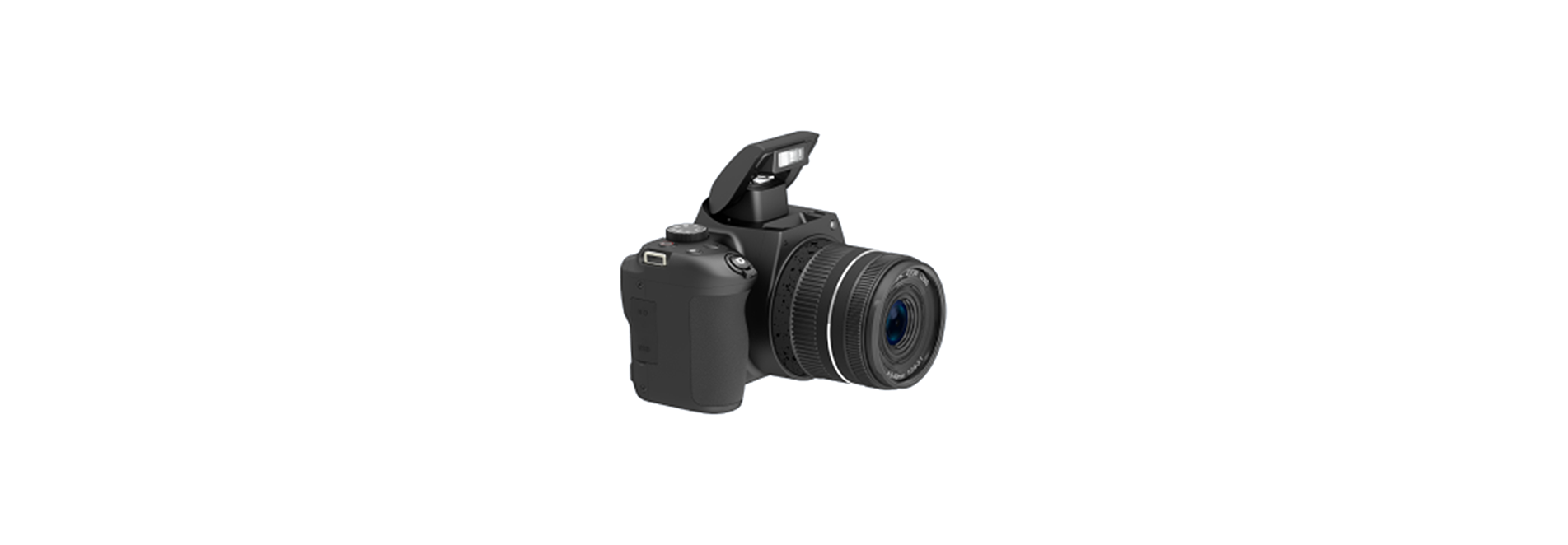

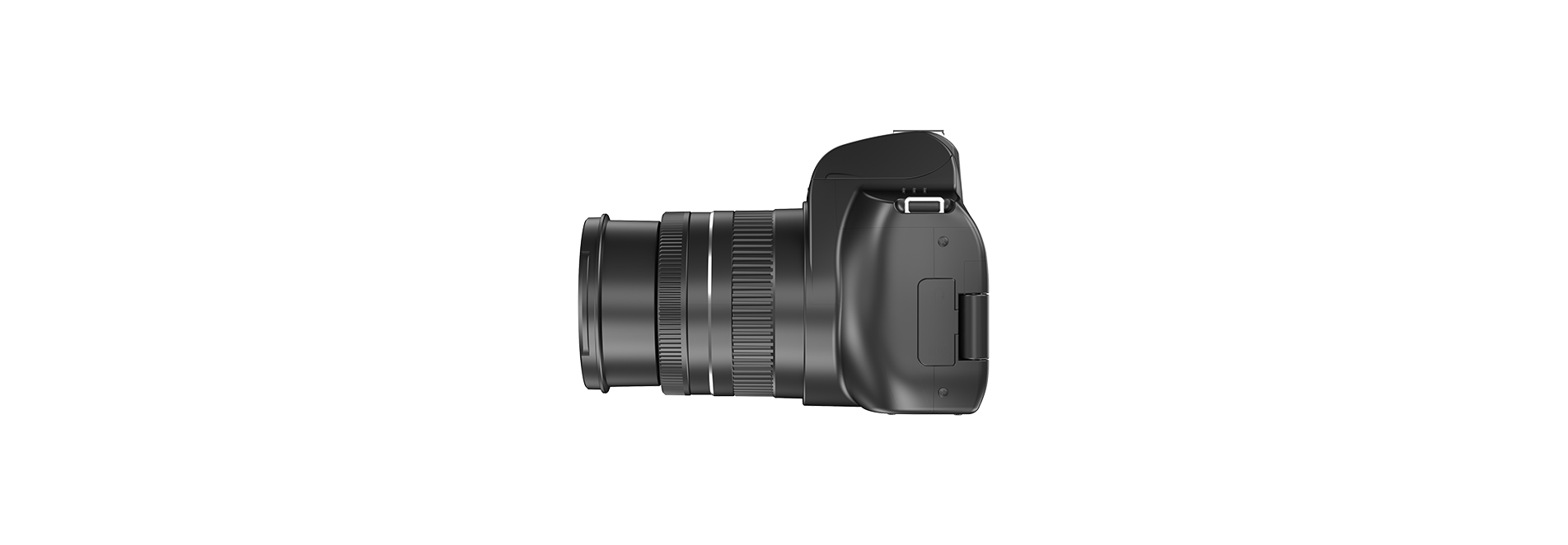

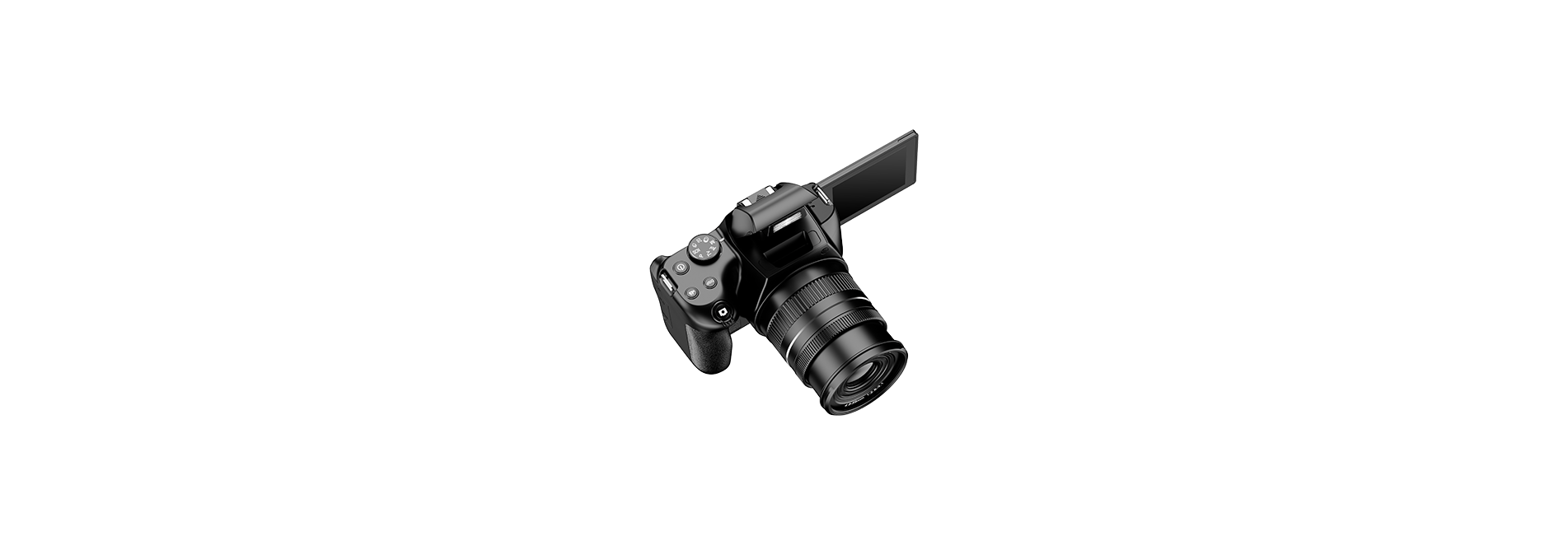

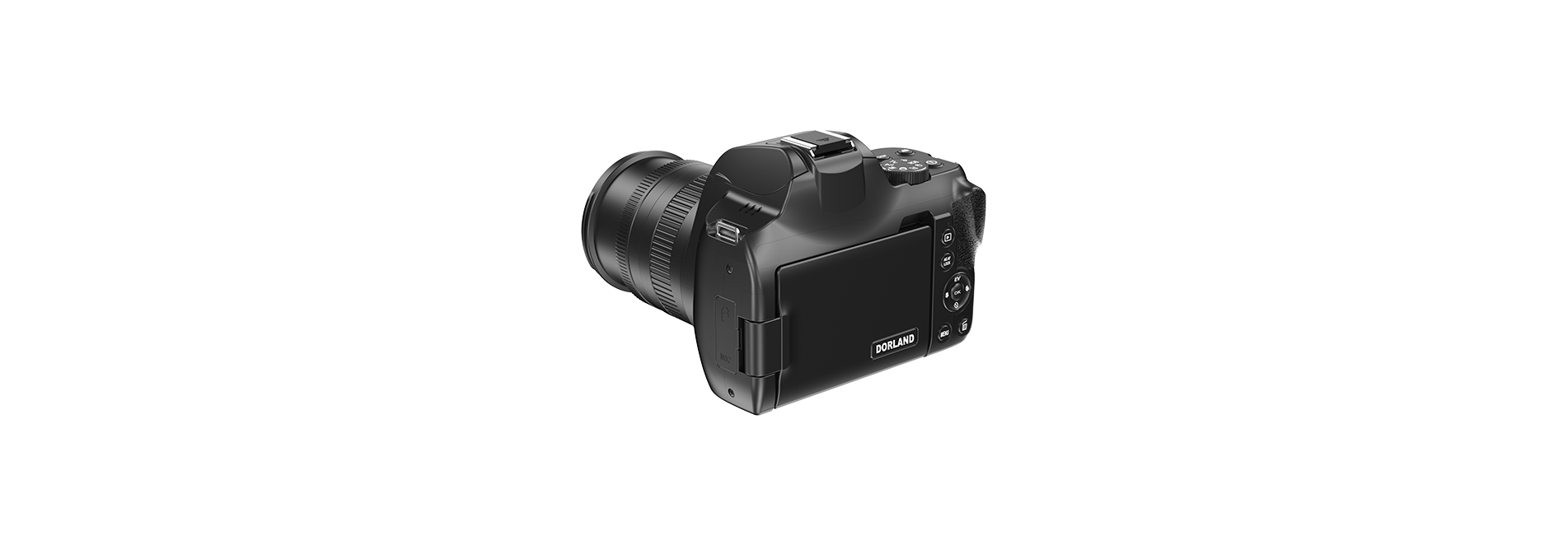

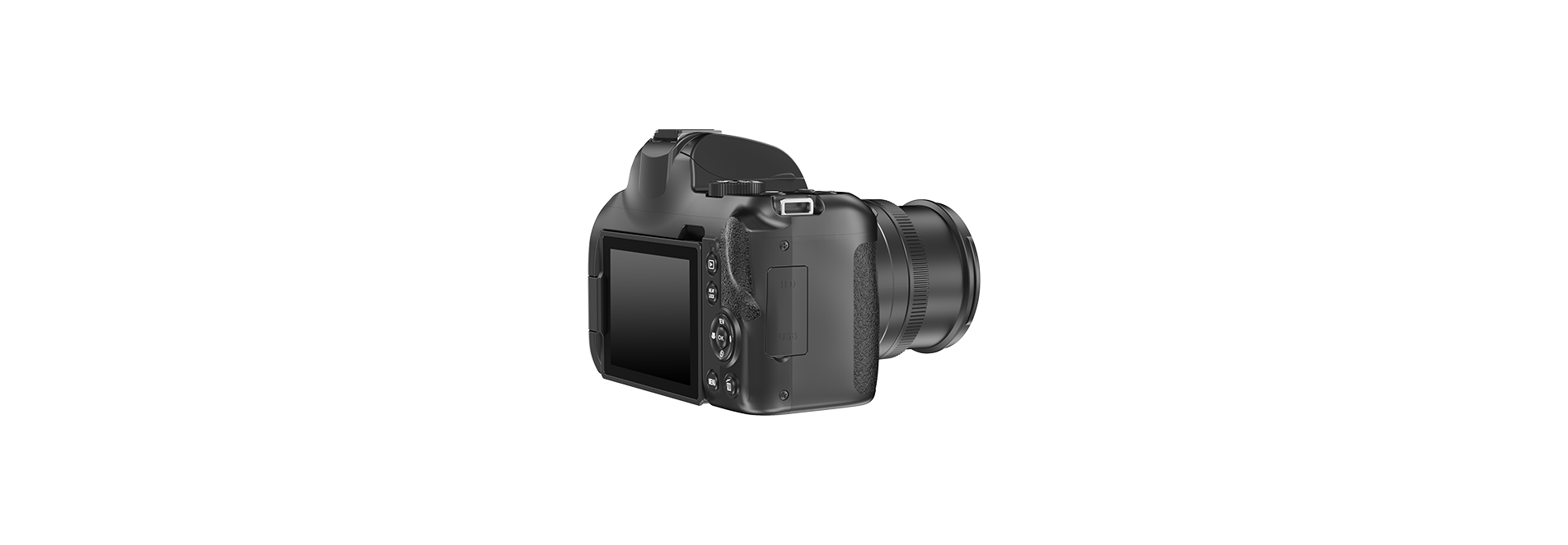

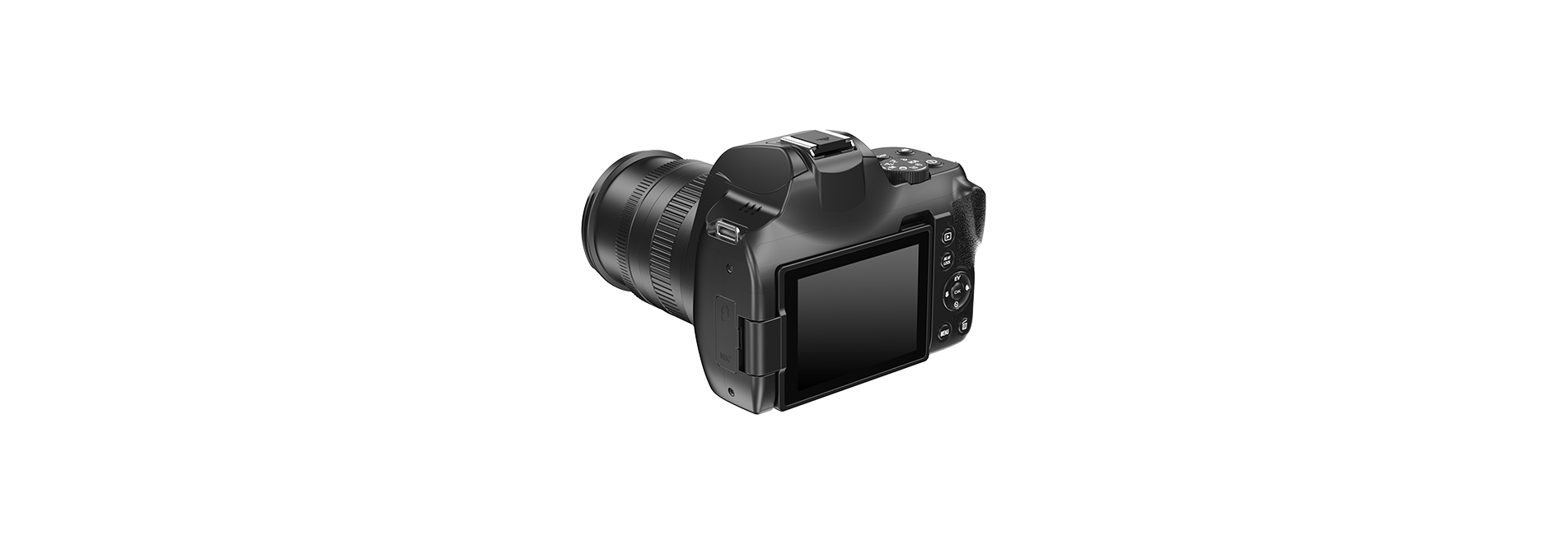

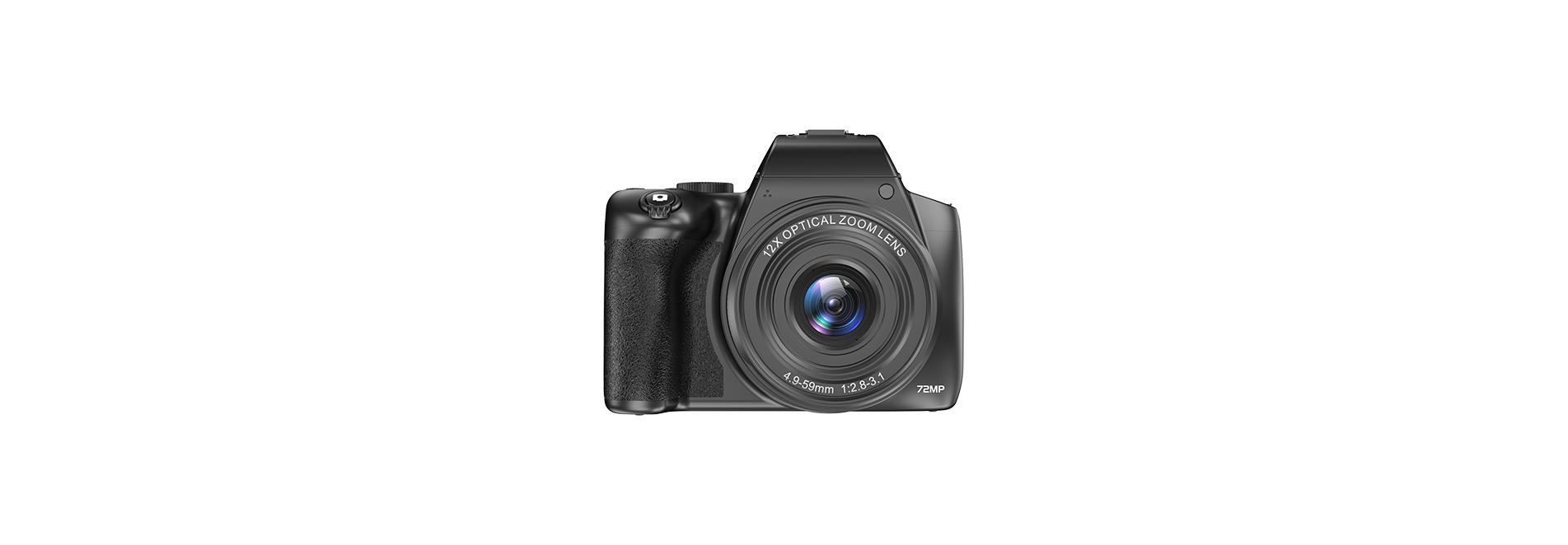

Dorland Intrinsically Safe Industrial Explosion-proof Camera EX Camera 03

Ex-Marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Image sensor type:SONY 13 million high sensitivity CMOS sensor

Zoom:10X

Digital zoom:2X

Product Introduction
Technical Parameters
Product Certificate
Product Report

Dorland System Control Tech Co., Ltd. has recently launched the intrinsically safe industrial explosion-proof camera EX Camera 03, which features 72 million pixels, a 10x optical zoom lens and 2X digital zoom processor, built-in anti shake, smooth and clear dynamic shooting, precise autofocus, clear presentation of near and far scenes, and supports remote control shooting function.

In addition, it is also suitable for outdoor construction, pipeline inspection, etc. lt can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with fammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-Marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

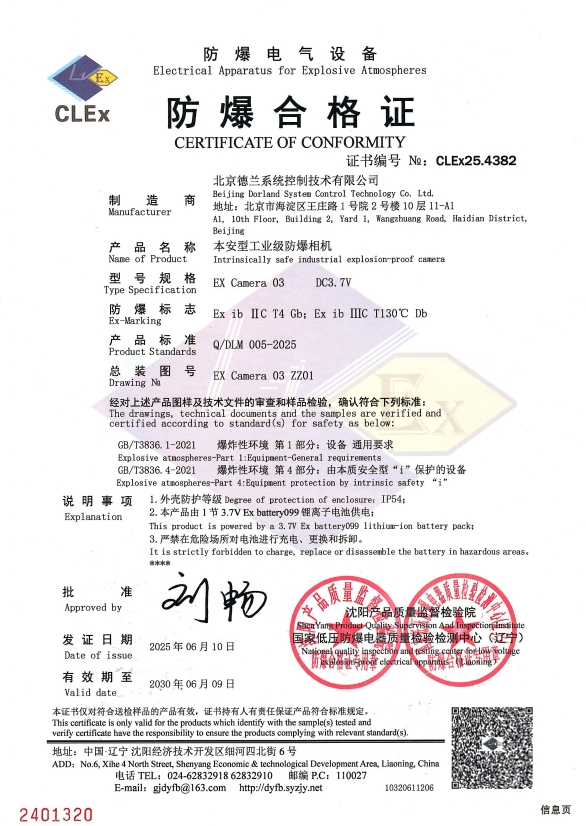

Certificate No.:

CLEx25.4382
Image sensor type:

SONY 13 million high sensitivity CMOS sensor
LCD display screen:

2.88 inch IPS 4:3 resolution 640 * 480
Zoom:

10X
Digital zoom:

2X
Photo format:

JPEG
Photo resolution:

72M, 48M, 24M, 13M, 5M
Video format:

MP4(H.264)
Video resolution:

UHD(4K):2880*2160(DAR 24fps) QHD(2K):2560*1440(30fps) FHD(1080P):1920*1080(60fps) FHD(1080P):1920*1080(30fps) HD(720P):1280*720(60fps)
Focusing method:

AF/MF
Electronic anti shake:

Built-in
AF Assist Lamp:

Built in

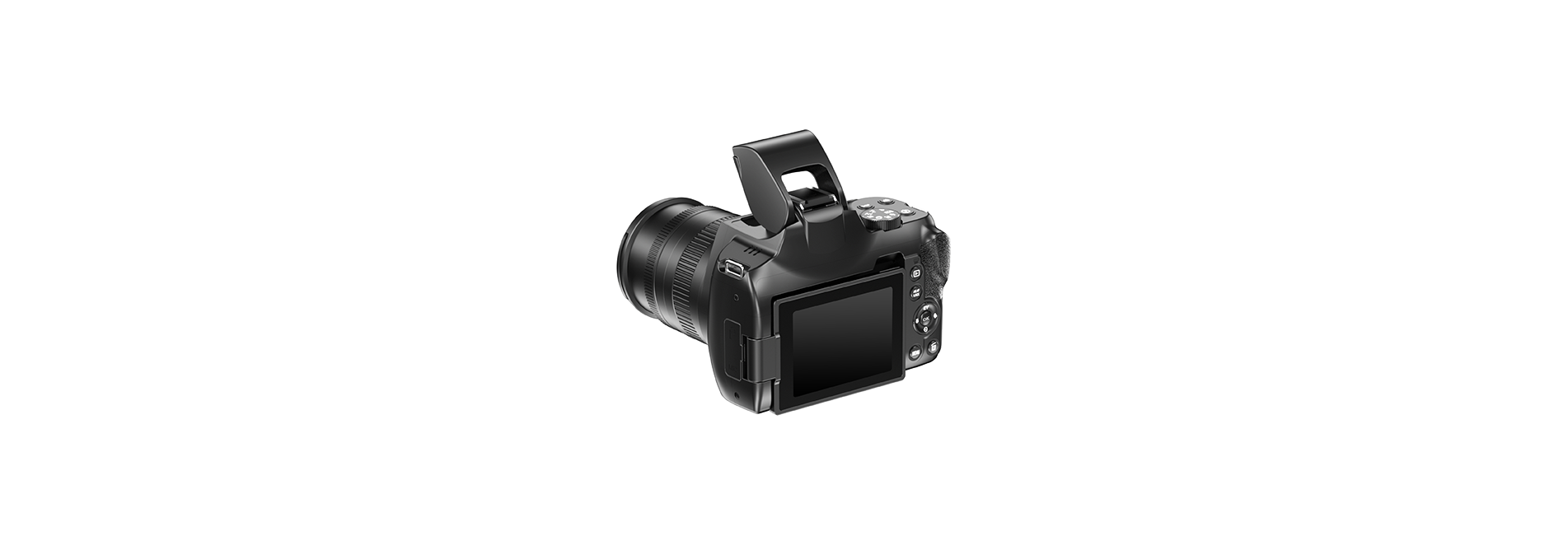

Photography flash:

Built in
Other features:

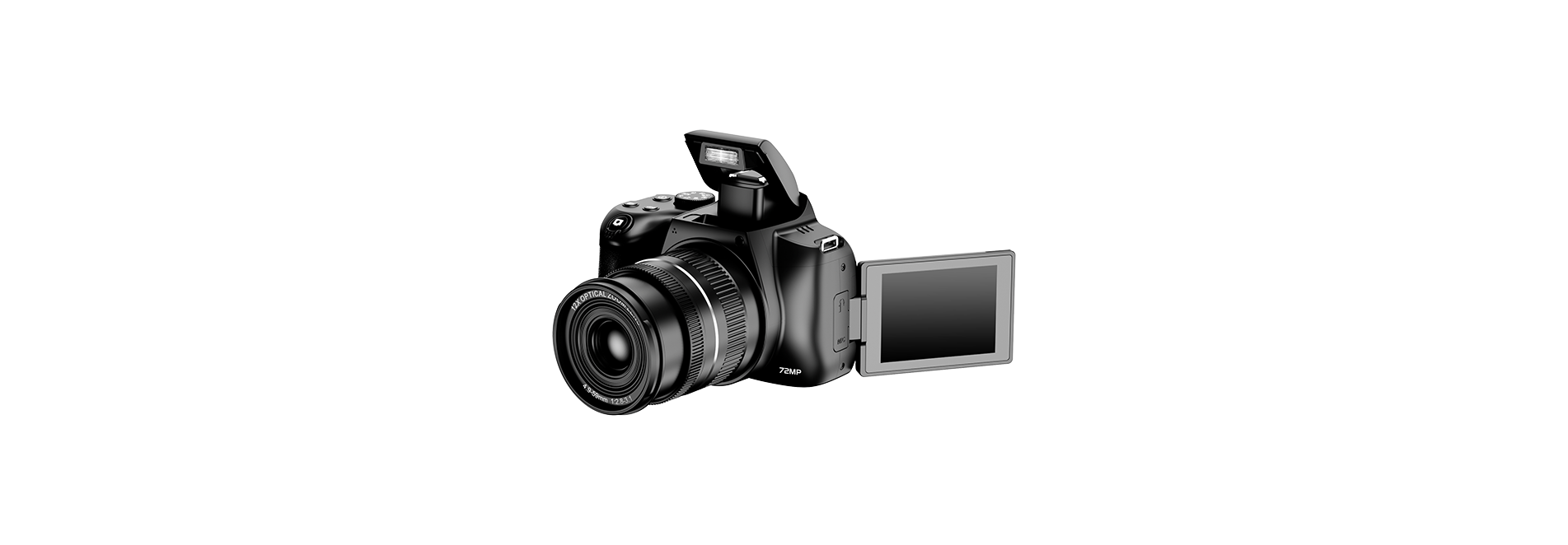

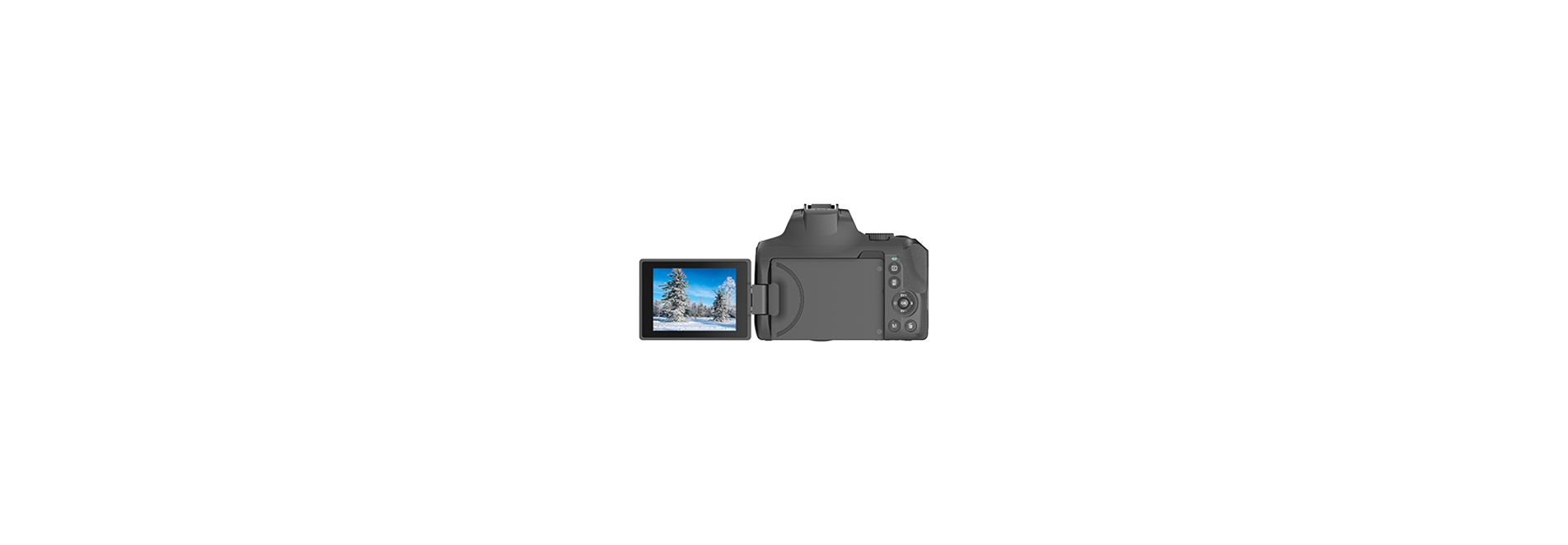

Face priority time-lapse Selfie (timed for 2 seconds, 5 seconds, 10 seconds) Support screen flipping
Battery:

Lithium Battery 3.7V 1450mAh
Dimensions:

123*125*100mm
Weight:

600g
