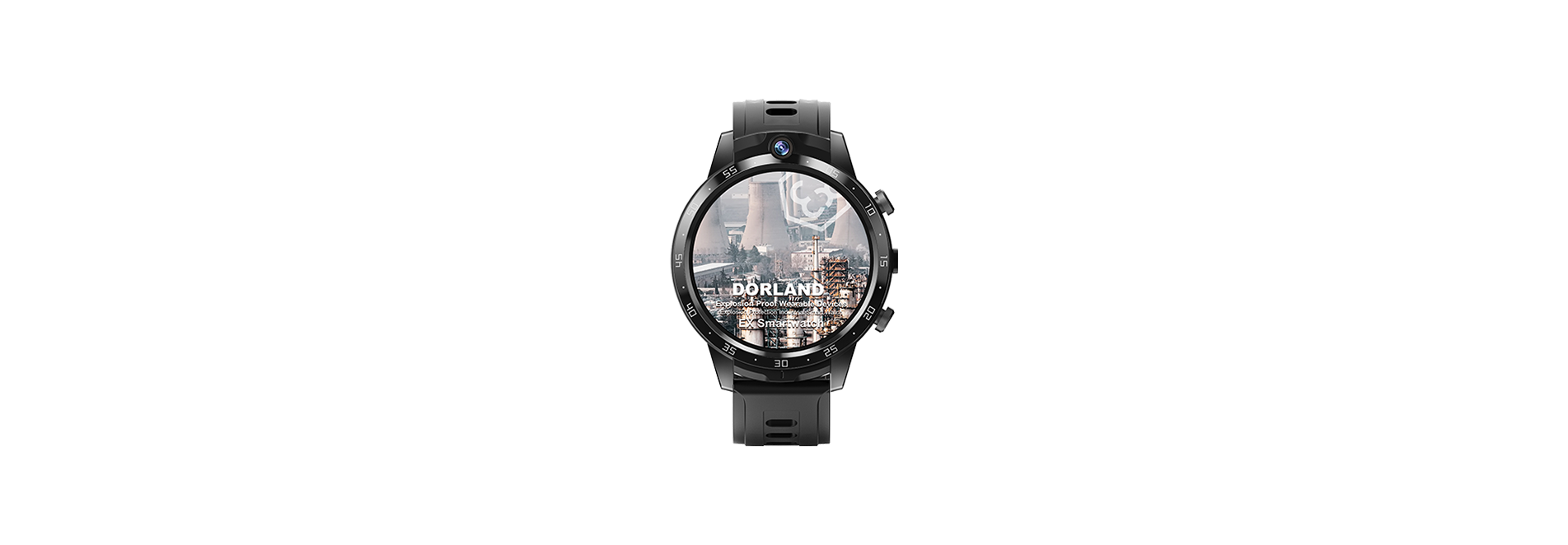

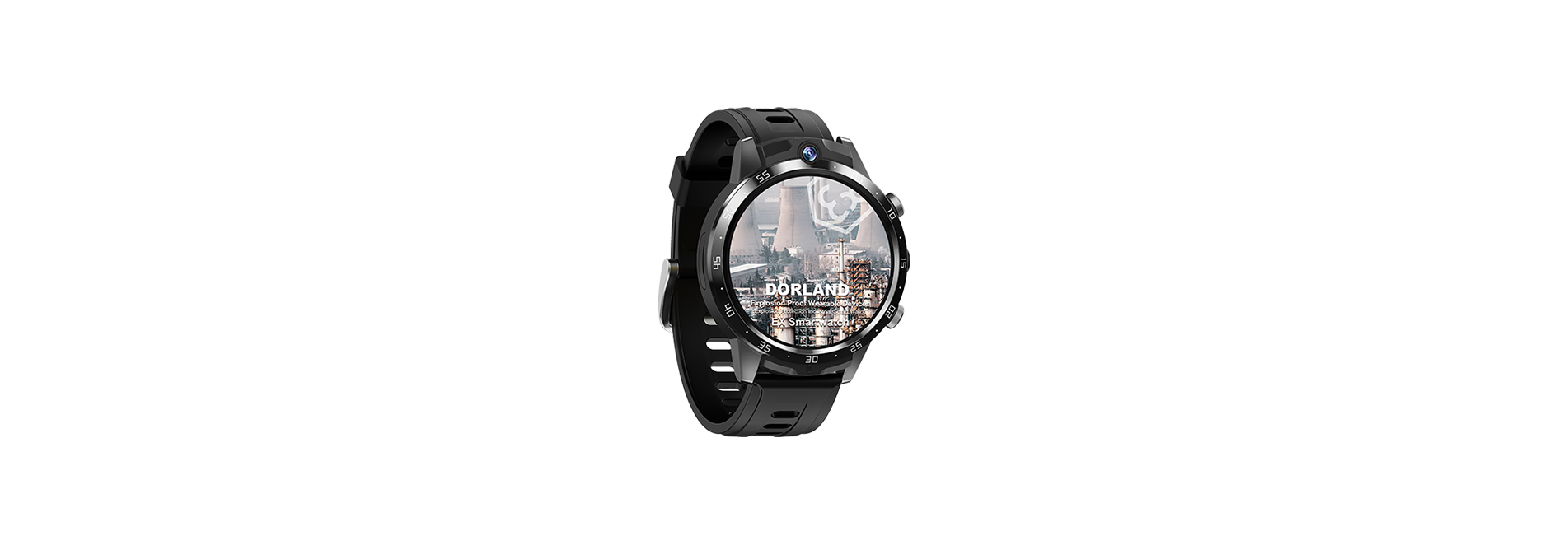

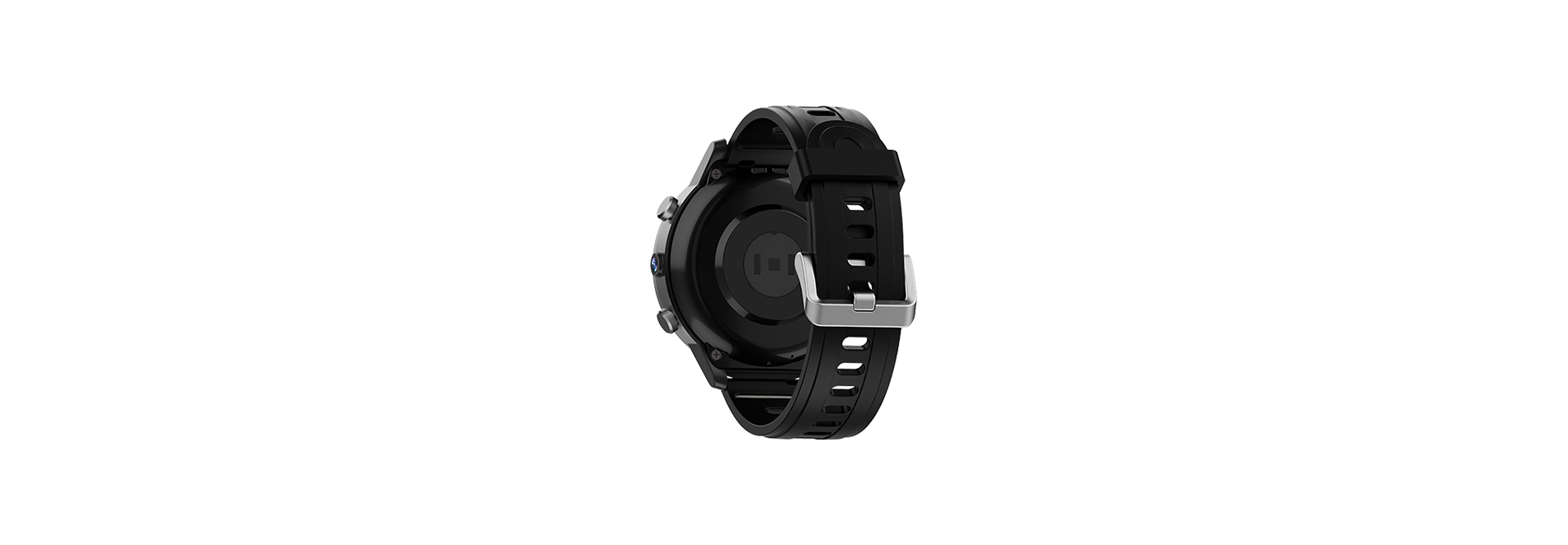

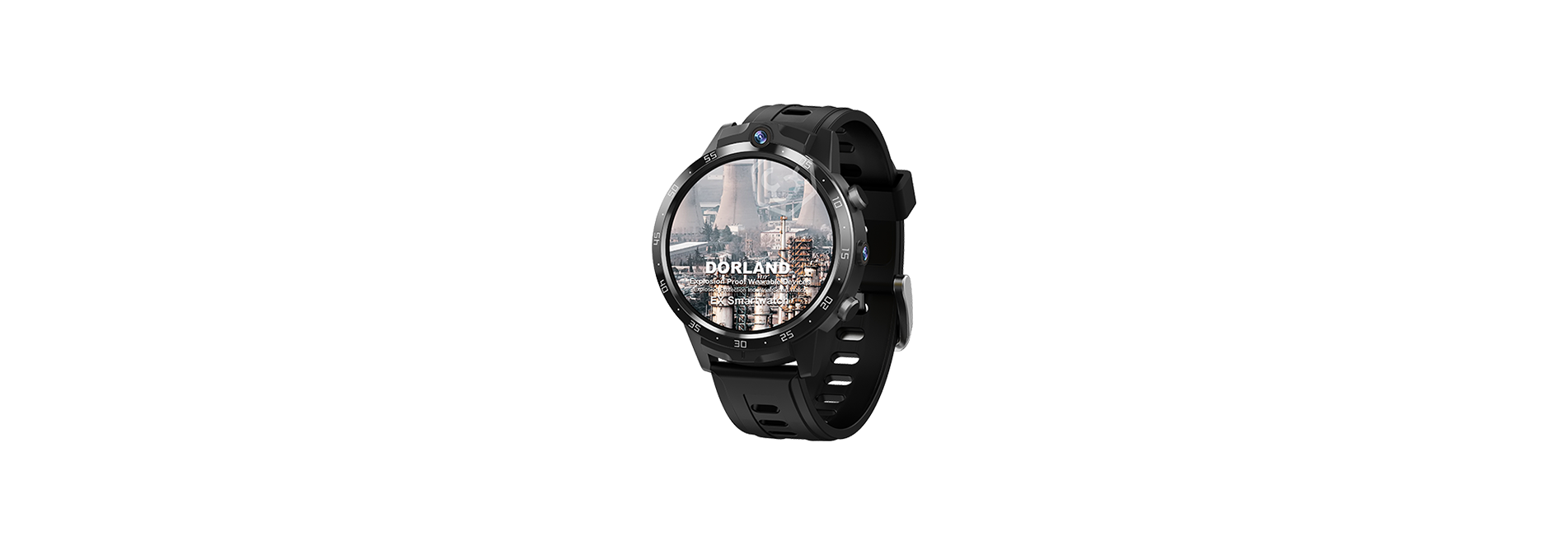

DORLAND Intrinsically Safe Intelligent Industrial Grade Explosion-proof Smart Watch Watch@ EX02

Dorland System Control Tech Co., Ltd. has recently launched the intrinsically safe intelligent industrial grade explosion-proof smart watch - Watch@ EX02, which features an intrinsically safe circuit design, a powerful appearance, and a sturdy body. This watch is a dual camera watch with a 1.6-inch touch screen display. It comes with a dual camera front 0.3MP and side 2MP, magnetic charging, and a 1260mAh battery for Android 9.0. The waterproof and dustproof performance of this watch meets the international IP67 standard, and the explosion-proof certificate is Ex ib IIC T4 Gb / Ex ib IIIC T130 ℃ Db dual explosion-proof certification for dust and gas.

In addition, the rear sensor of this watch can accurately recognize and analyze multiple exercise modes, detect heart rate, blood oxygen, and evaluate exercise effectiveness; We have also equipped the watch with various functions suitable for outdoor construction, pipeline inspection, etc., such as GPS positioning, which can be used in conjunction with OA office systems, inspection positioning systems, data collection systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:

CCRI 24.7755X
IP Grade:

IP67
Operating system:

Android 9.0
CPU:

Spreadtrum SL8541E 4core 1.4GHz
Memory:

2+16, 4+64Gb
GPS:

Beidou and GPS
SIM card:

Support Nano card
Display screen:

Round 1.6-inch TFT 400 * 400
Network:

GSM B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 LTE_FDD:B1/B2/B3/B5/B7/B8/B20 LTE-TDD:B38/39/40/41(100MHz)
WIFI:

support
NFC:

support
Bluetooth:

BT4.2
Front camera:

0.3MP
Side camera:

2MP
Health:

Step counting,Heart rate,Blood oxygen
Battery:

1260mAh, 3.85V

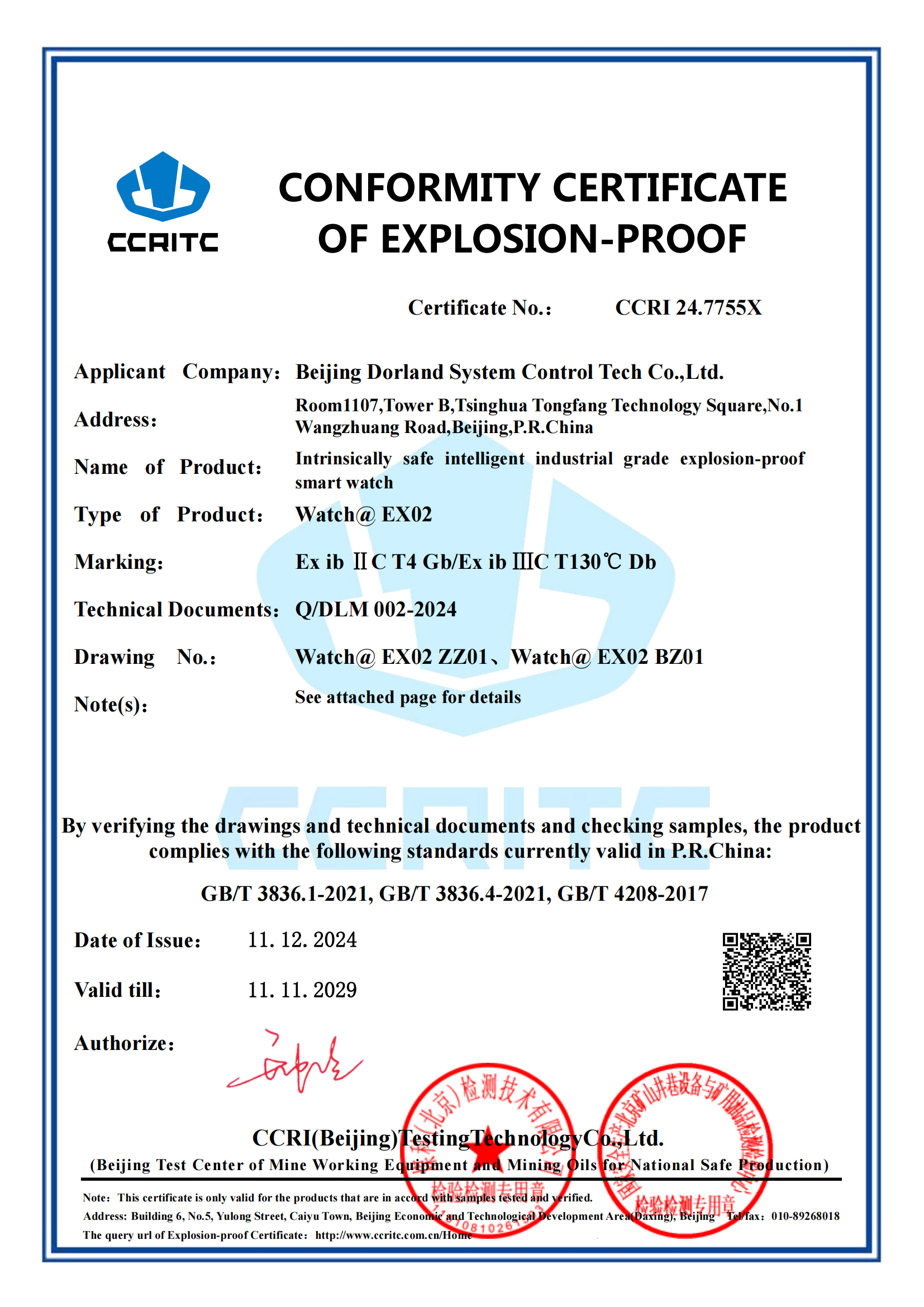

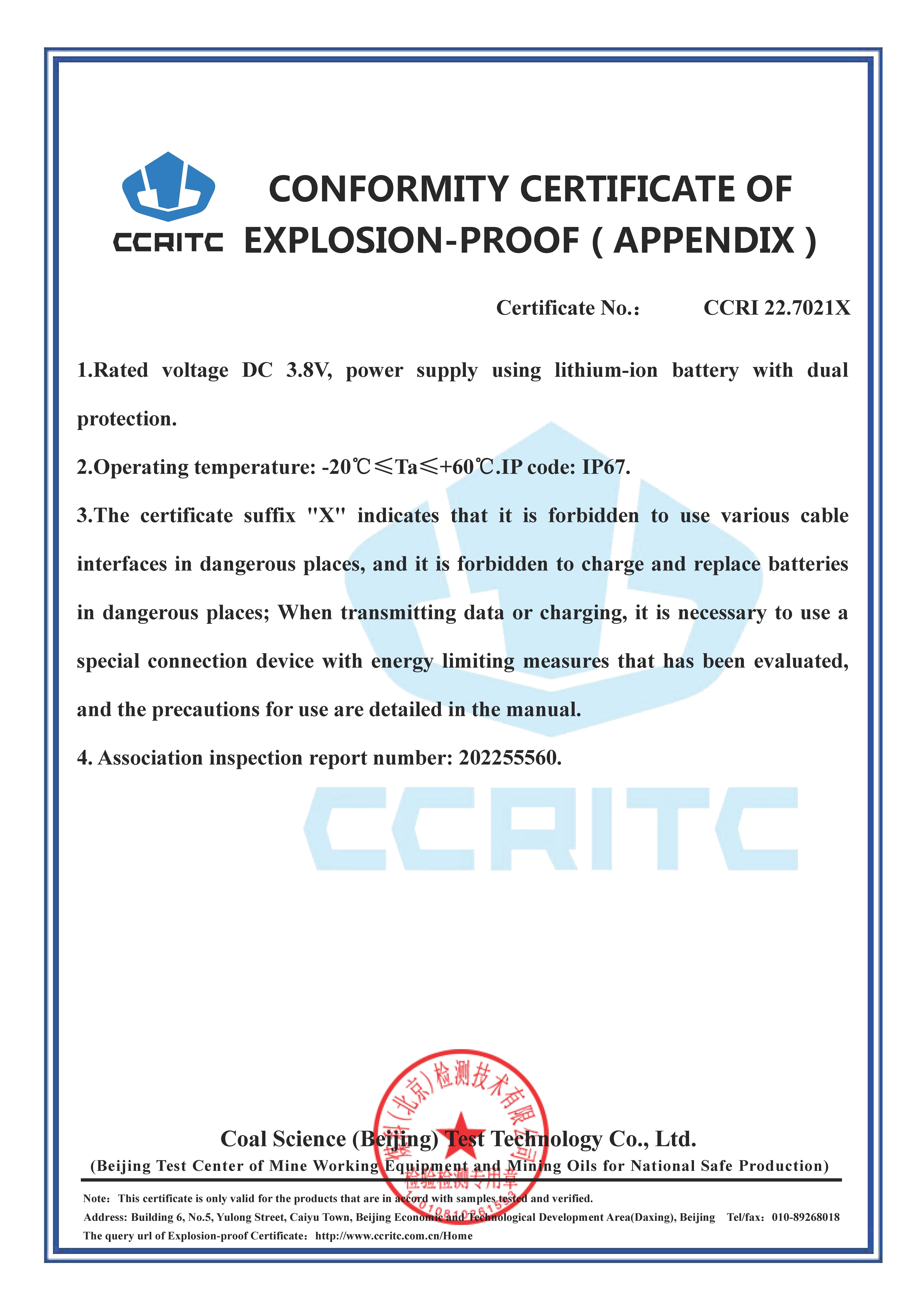

Watch@EX02 Certificate

Download

Watch@EX02 Certificate

Download

Watch@EX02 Inspection Report

Check the details Download
