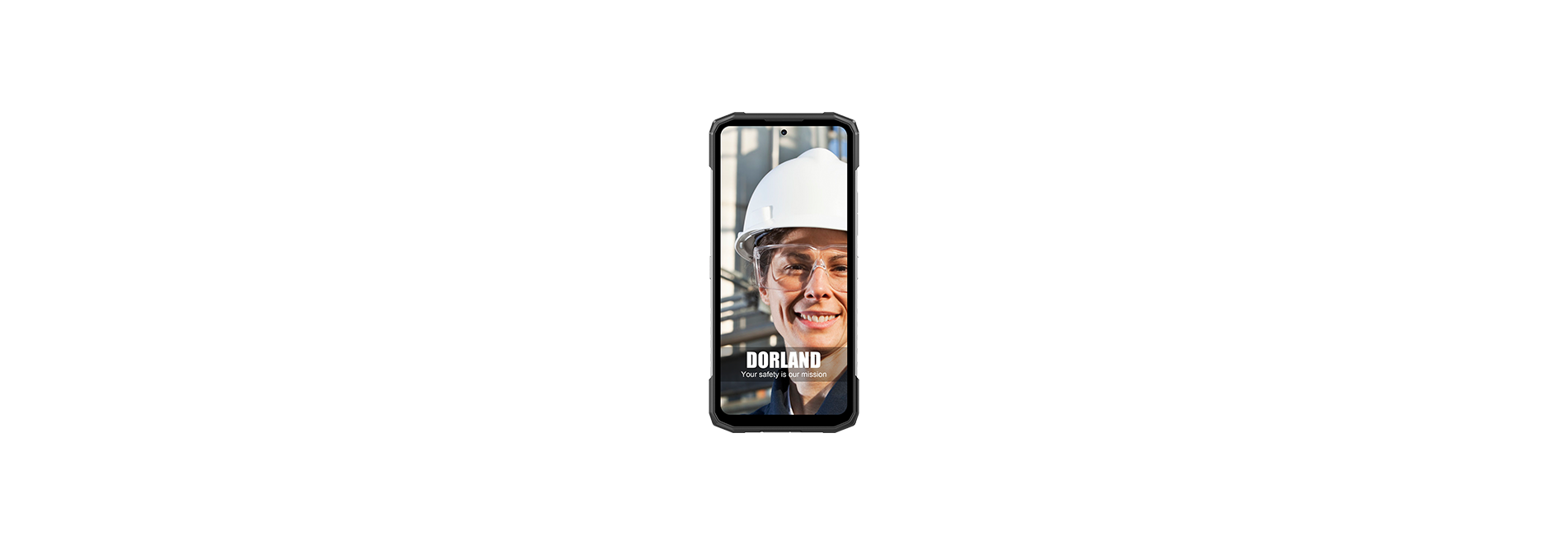

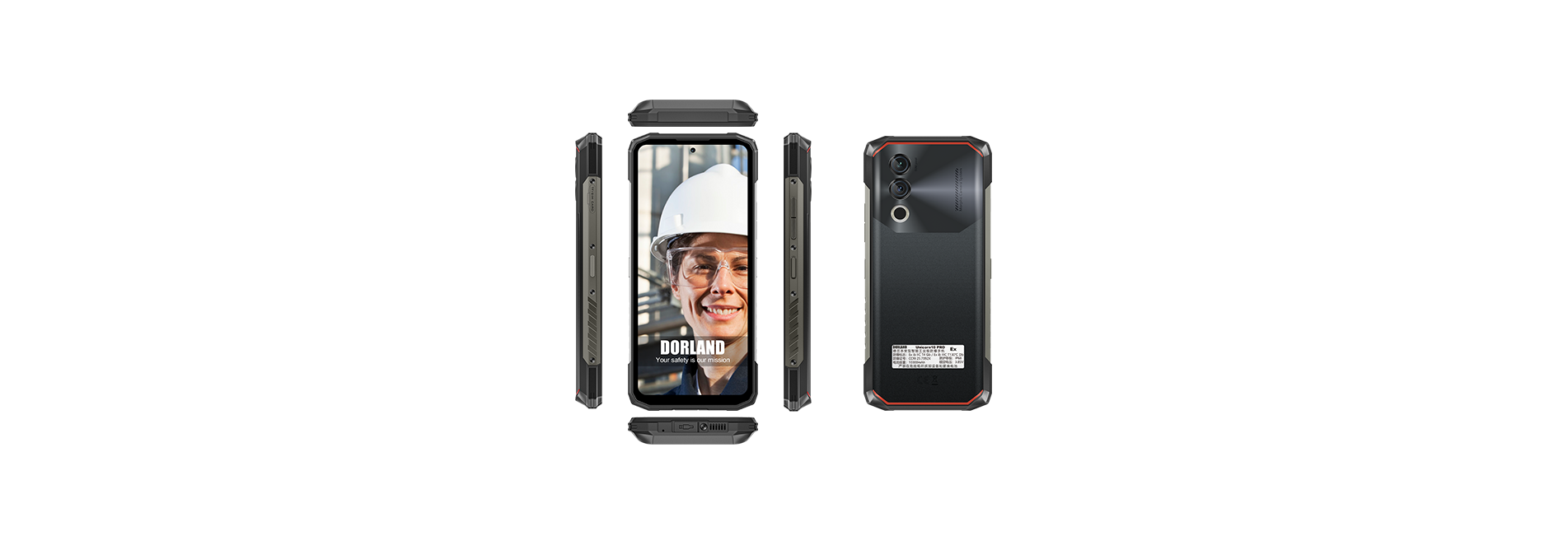

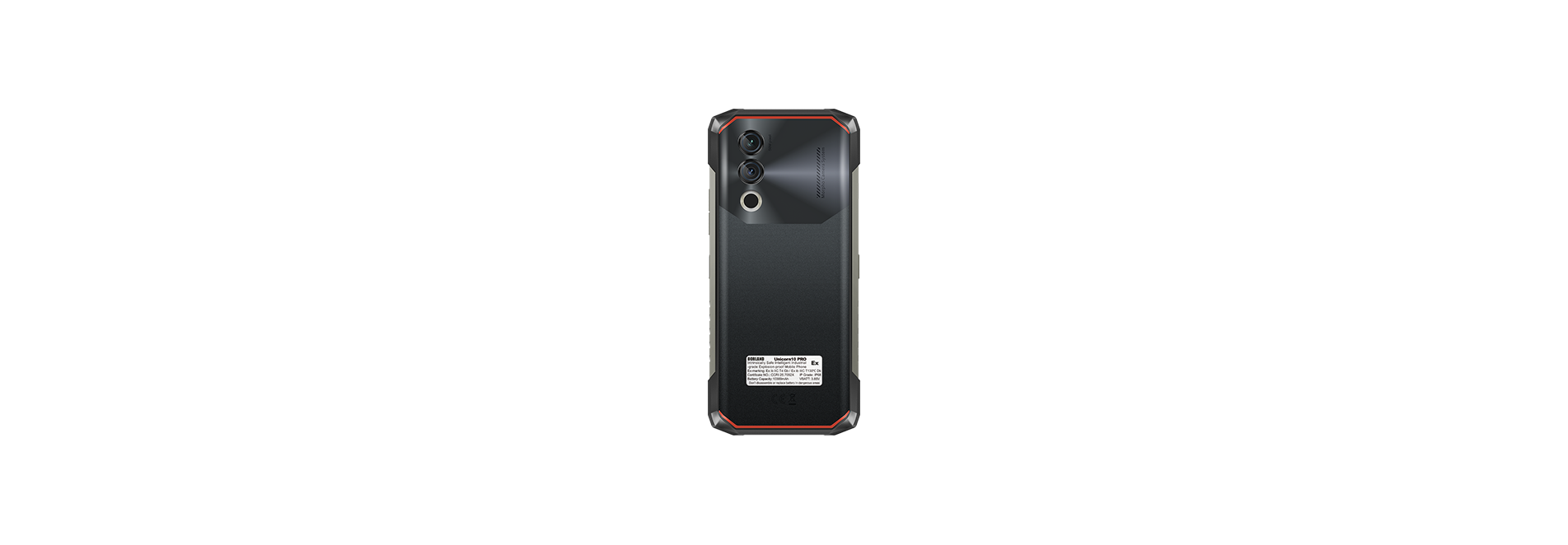

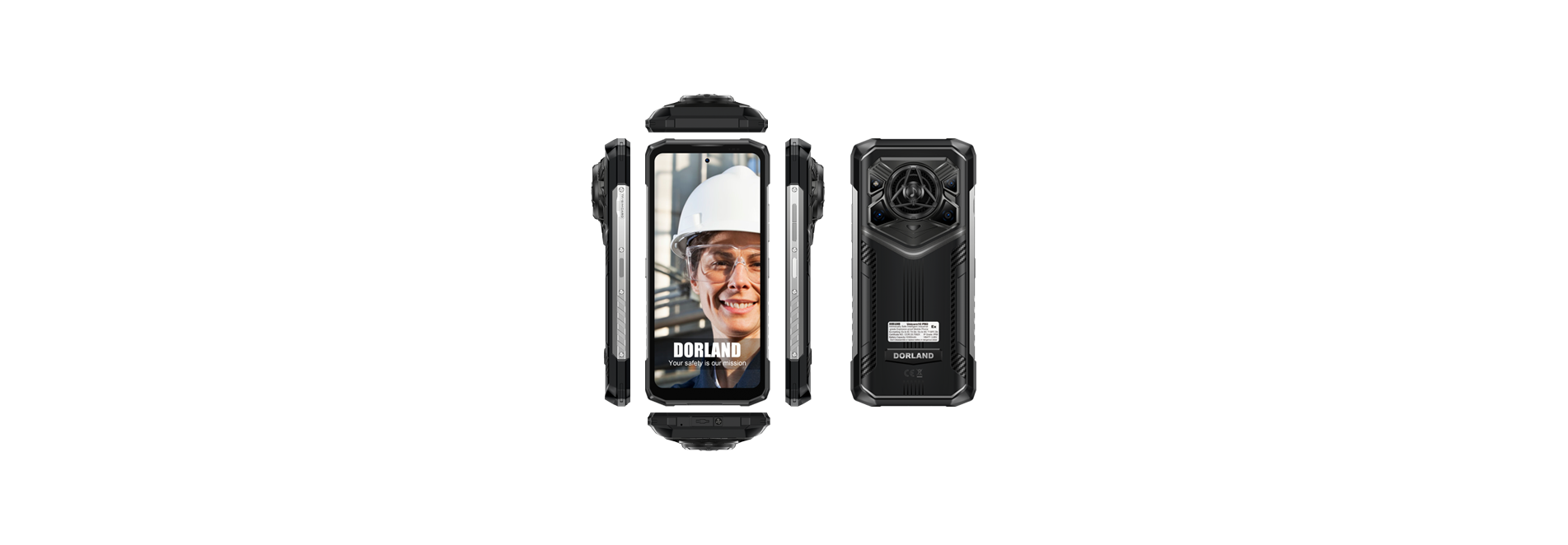

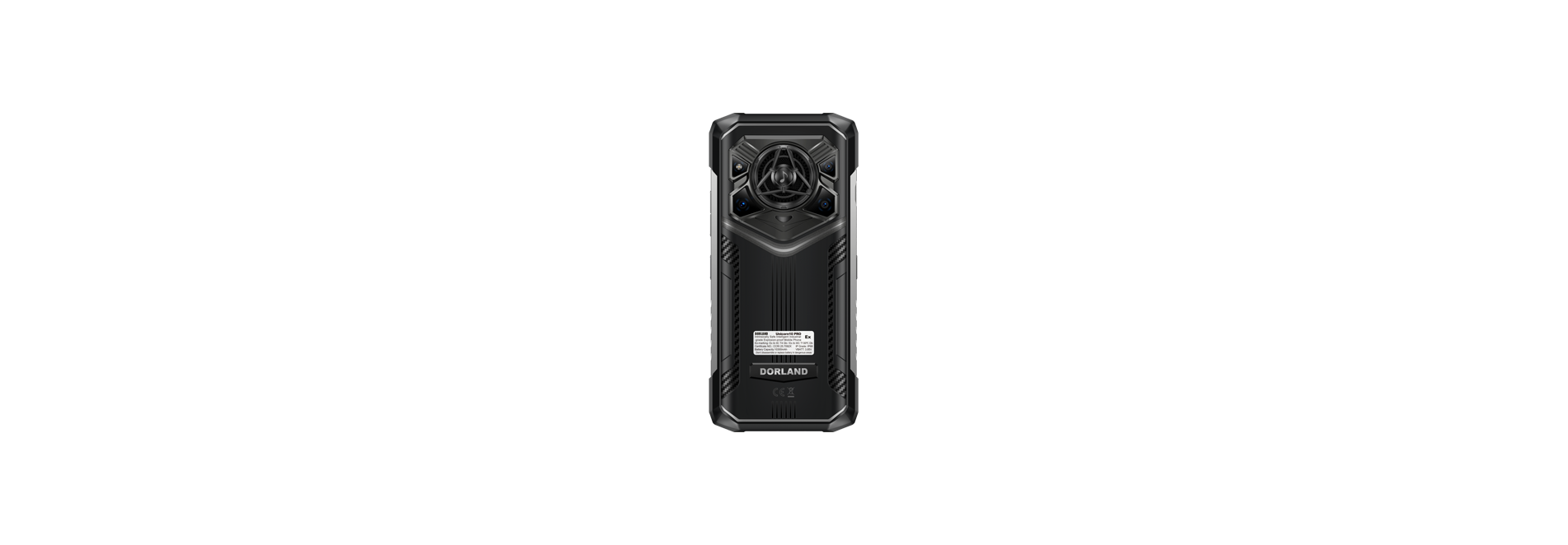

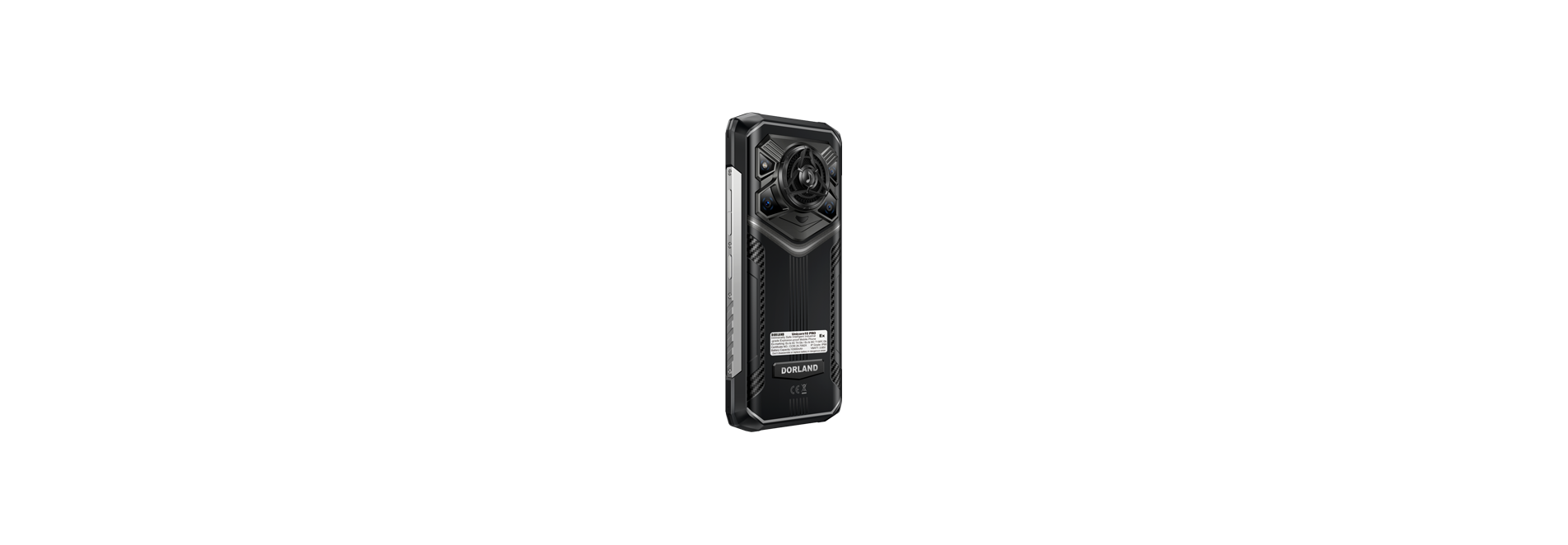

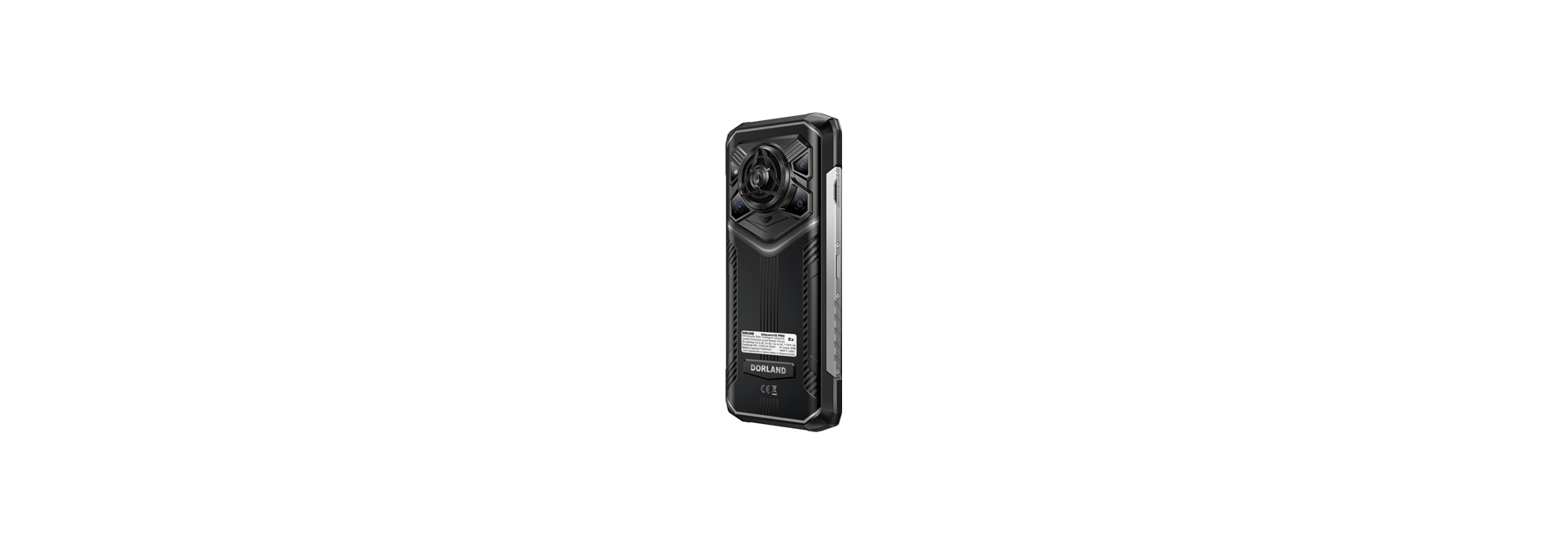

Unicorn10 PRO（Premium）

DORLAND Industrial Intrinsically Safe Smartphone Unicorn10 PRO

Ex-marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

IP Grade:IP68

OS:Android 14.0

Memory:6GB+256GB（RAM expansion 18GB)

Product Introduction
Technical Parameters

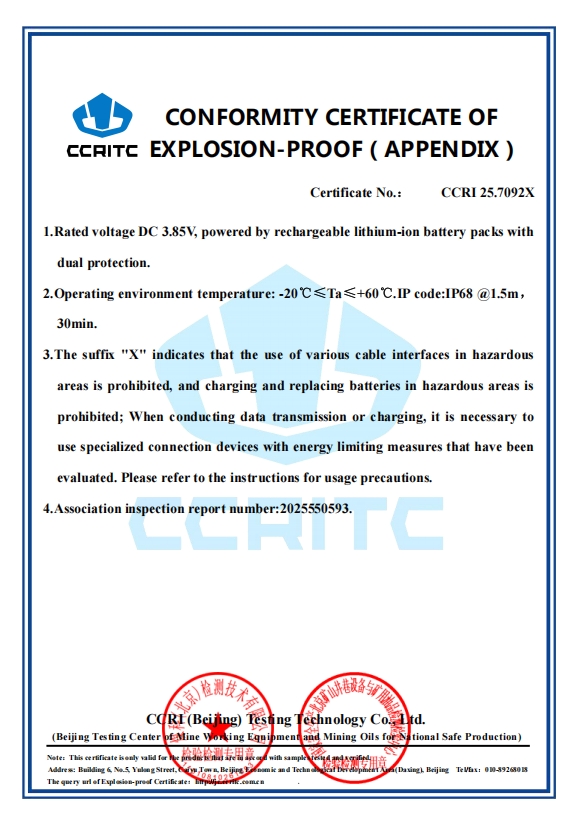

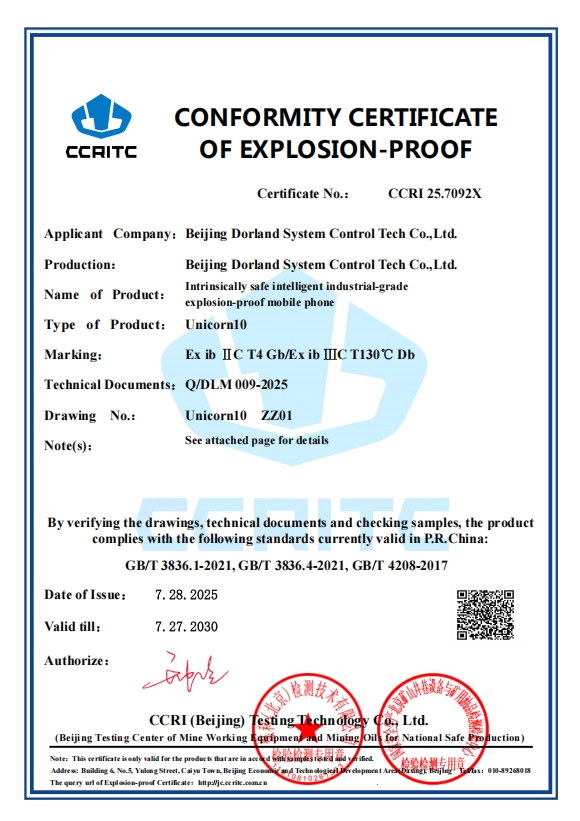

Product Certificate
Product Report

DORLAND System Control Technology Co., Ltd. recently introduced the intrinsically safe intelligent industrial-grade explosion-proof mobile phone Unicorn10 PRO. It adopts advanced technology, intrinsically safe circuit design, domineering appearance and solid body. The mobile phone adopts 6.6 inch full screen (20:9) design, equipped with 8MP front and 50MP+20MP+0.3MP pixel high-definition camera at the rear. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, the phone supports NFC, fingerprint unlocking and other functions. This is equipped with GPS positioning, compass and other functions suitable for outdoor construction and pipeline inspection. It can cooperate with OA office system, patrol positioning system, data acquisition system and other applications. Especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate NO.:

CCRI 25.7092X
IP Grade:

IP68
OS:

Android 15.0
CPU:

UNISOC T7200 (T606), 8-core, 2* 1.6GHz + 6* 1.6GHz
Screen:

6.6inches (20:9) 720*1612 HD+
Memory:

RAM：6GB（+Extended RAM 18GB ) ROM：256GB
Storage Card:

Support T-flash card, Up to 2TB
Cameras:

Rear Camera 50MP+20MP(night vision)+0.3MP(Without function) Front camera 8MP
Battery capacity:

10300mAh
Battery voltage:

3.85V
Frequency:

GSM: B2/3/5/8 WCDMA: B1/2/4/5/8 TDD: B34/38/39/40/41 FDD: 1/2/3/4/5/7/8/18/19/20/25/26/28AB/66 EDGE/GPRS: Support
GPS:

Support, Beidou, Galileo, Glonass, GPS
Bluetooth:

BT5.0
NFC:

Support
