EX Card Camera 02 Max

Dorland Intrinsically Safe Explosion-proof Digital Camera EX Card Camera 02 Max

Explosion-proof mark:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Protection level:IP54

Zoom:8x optical zoom

Photography:Dual front and rear cameras (64 million)

Product Introduction
Technical Parameters
Product Certificate
Product Report

DORLAND System Control Technology Co., Ltd. recently launched Intrinsically Safe Explosion-proof Digital Card Camera EX Card Camera 02 Max, which uses front and rear dual camera lenses (64 million pixels) for easy selfies, supports EIS electronic image stabilization, supports autofocus, and presents clear near and far scenes.

In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Explosion-proof mark:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

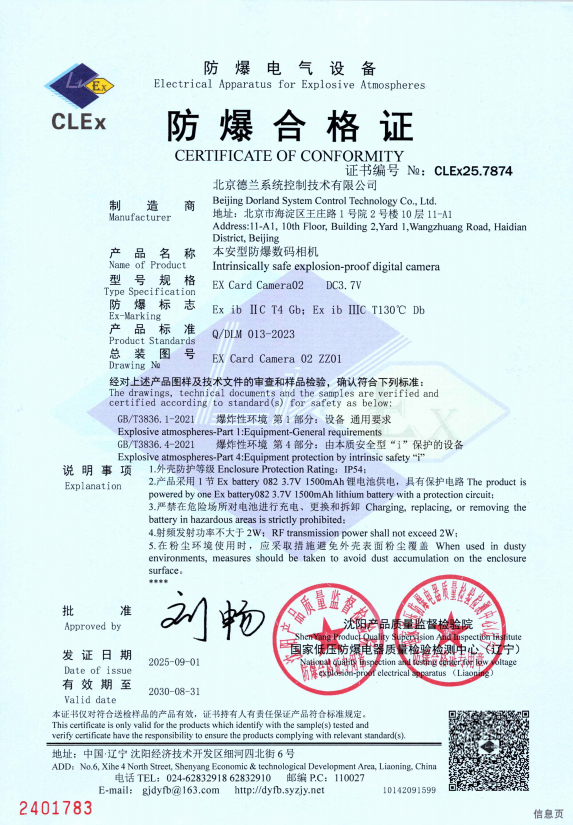

Explosion proof certificate number:

CLEx25.7874
Protection level:

IP54
Zoom:

8x optical zoom
Image resolution:

64M; 48M; 36M; 24M; 20M; 16M; 12M; 8M
Video resolution:

5K25fps; 4K/30fps; 2.7K/30fps; 1080P/60fps; 1080P/30fps; 720P/60fps
Front image sensor:

8 million pixel CMOS sensor (up to 64MP interpolation) ,size:1/2.8 inch
Rear image sensor:

13 million pixel CMOS sensor (up to 64MP interpolation) ,size:1/3.06 inch
Front camera:

Lens type: 9G4P, focusing distance: 0.2m (W) -0.4m (T)
Rear camera:

Lens type: 7P, focusing distance: 0.5m-0.8m
Display screen:

Type: IPS high-definition touch screen, size: 3.6 inches, resolution: 720 * 1280
Battery:

3.7v 1500mAh
Auto focus:

Support
Supplementary lighting method:

Supports LED flash and external extended flash
Auxiliary focus point:

Close/Automatic
File format:

Photo: jpg, Video: mp4
Memory card:

Body cache: 8Gb, supports extended TF card (maximum 256GB)
Interface:

USB, HDMI, MIC, TF card slot, tripod mounting hole
Shutter speed:

1/25 seconds~1/480 seconds
Weight:

415g (including battery), 390g (excluding battery)
Product dimensions:

126.1*83.9*73.2mm
