Extremity IS PDA 10

DORLAND Industrial Intrinsically Safe PDA Extremity IS PDA 10

Ex-marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

OS:windows 10 (IOT), optional windows 11 (IOT)

CPU:Intel JASPER LAKE N5100

Memory:8+128Gb

Product Introduction
Technical Parameters
Product Certificate
Product Report

Dorland System Control Tech Co., Ltd. has recently launched the Extremity IS PDA 10, an intrinsically safe intelligent full network industrial grade explosion-proof handheld terminal. It adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. This product is equipped with the Windows 10/11 intelligent operating system, using a high-performance processor and powerful configuration. This device can integrate modules and functions such as QR code scanning, NFC reading and writing, GPS positioning, etc. It is suitable for outdoor construction, pipeline inspection, and other functions, and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

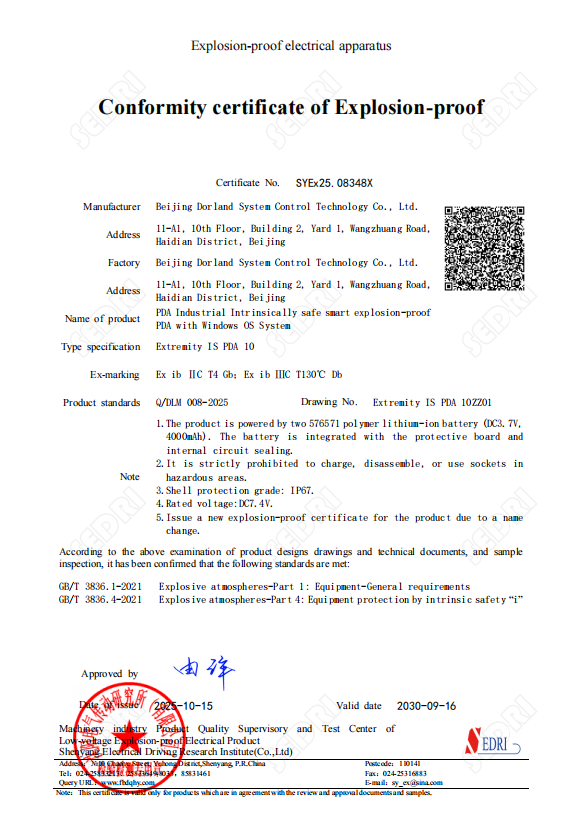

Certificate No.:

SYEx25.08348X
IP Grade:

IP67
OS:

windows 10 (IOT), optional windows 11 (IOT)
CPU:

Intel JASPER LAKE N5100
Screen:

IPS, 6.5 inch full laminated TFT color full screen,Drop notch 20:9, Resolution: 720*1600
Memory:

8+128Gb
Camera:

Front 5M, Rear 8M, autofocus with flash
WIFI:

Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Bluetooth:

BT5.0 (BLE) class1 transmission distance: greater than 10m
GPS:

GPS+GLONASS
Dimension:

183.1*88.6*24.1mm
Battery:

External polymer lithium ion battery7.4V/4000mAh
Battery life:

About 6 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default )
NFC:

Support
Data Collection:

2D Barcode Scanner, NFC
