Ex Tablet14

DORLAND Industrial Intrinsically Safe Smart Explosion-proof Tablet PC with Windows OS System Ex Tablet14

Ex-marking:Ex ic IIC T5 Gc / Ex ic IIIC T95℃ Dc

OS:windows 11/10 (Home / Pro / IOT 64) bit

Screen:14 inch 16:9 1920*1080

Memory:RAM: 16GB DDR5 (4800MHz), Optional: 32GB DDR5 (4800MHz) ROM: 256GB SSD, Optional: 512GB / 1TB

Product Introduction
Technical Parameters

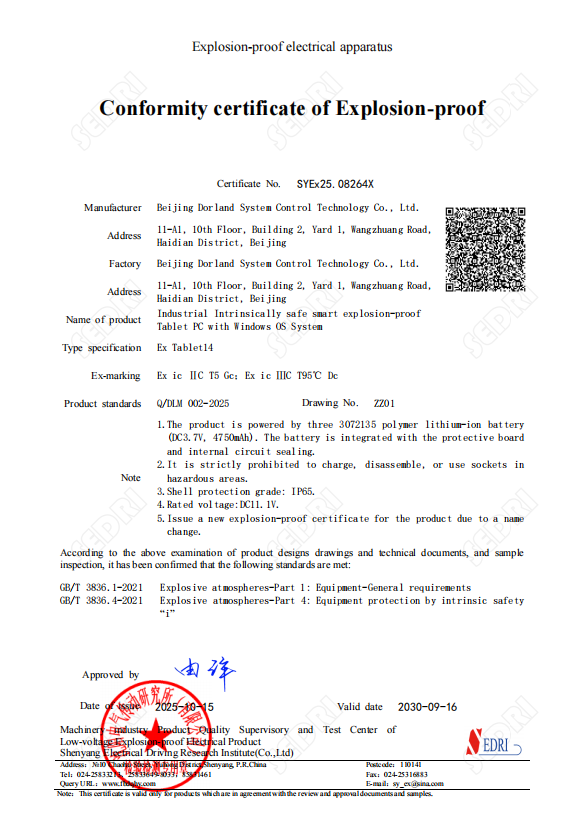

Product Certificate
Product Report

Dorland System Control Tech Co., Ltd. has recently launched the Ex Tablet 14, an industrial intrinsically safe smart explosion-proof tablet PC with windows OS system. It adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. This product adopts the Windows 11 operating system and a 14 inch touch screen design, equipped with a front 5-megapixel camera and a rear 8-megapixel camera. Its waterproof and dust-proof performance meets the international IP65 standard.

In addition, we have also equipped various outdoor construction and pipeline inspection functions such as GPS/ Glonass within the PAD, which can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-marking:

Ex ic IIC T5 Gc / Ex ic IIIC T95℃ Dc
Certificate NO.:

SYEx25.08264X
IP Grade:

IP65
OS:

windows 11/10 (Home / Pro / IOT 64) bit
Screen:

14 inch 16:9 1920*1080
Memory:

RAM: 16GB DDR5 (4800MHz), Optional: 32GB DDR5 (4800MHz) ROM: 256GB SSD, Optional: 512G / 1TB
CPU:

Intel 12th Generation, Intel i5-1235U / i7-1255U
Cameras:

Front: 5.0MP + Rear: 8.0MP
Battery:

11.1V / 4750mAh
Dimension:

366.2*246.9*24.8mm
GPS:

Supports single GPS or single Glonass, default GPS
Bluetooth:

BT5.1 (BLE) class1, Data transmitted distance：10m
WIFI:

Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
Data Collection:

Fingerprint / NFC / 2D Barcode Scanner
Internal Expansion Slots:

M.2 2280 PCIE interface *1, optional SSD M.2 E-KEY PCIE interface*1, optional Custom module
I/O Interfaces:

USB3.2 *1, USB2.0 *2 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1 TF card *1 RJ45*1 10M/100M/1000M self-adaptive RJ45*1 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 12PIN Pogo Pin (USB & Charging) *1
