EX Rugged Camera 05

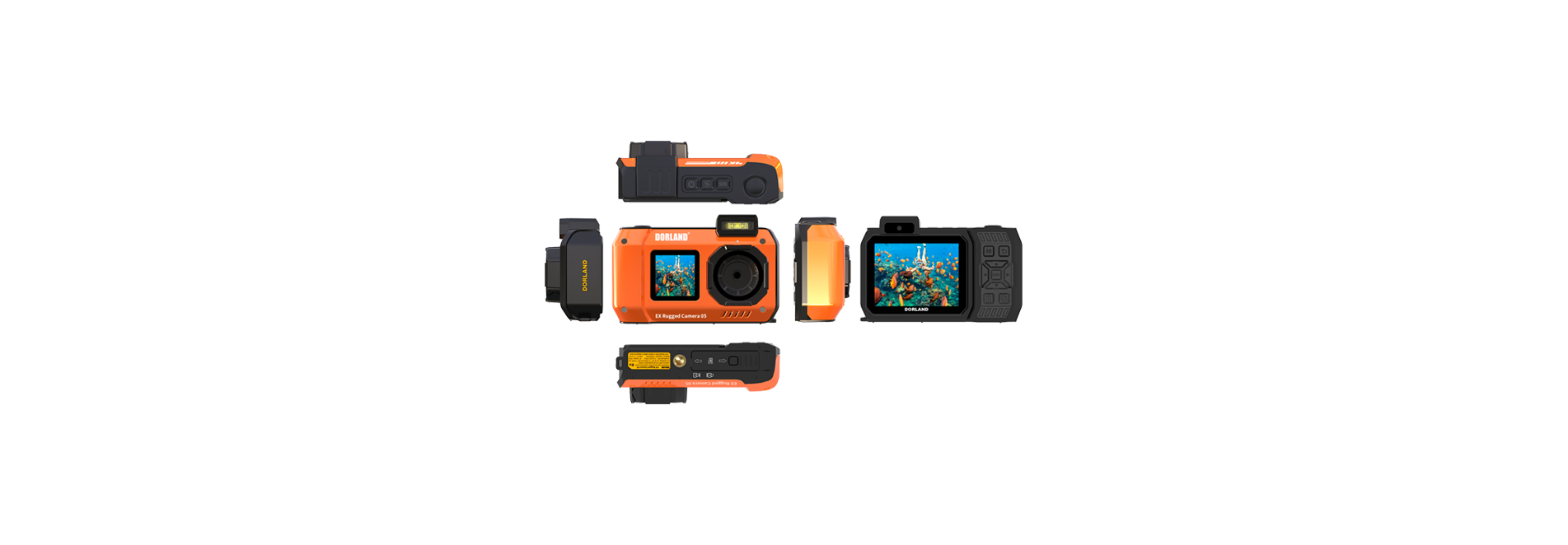

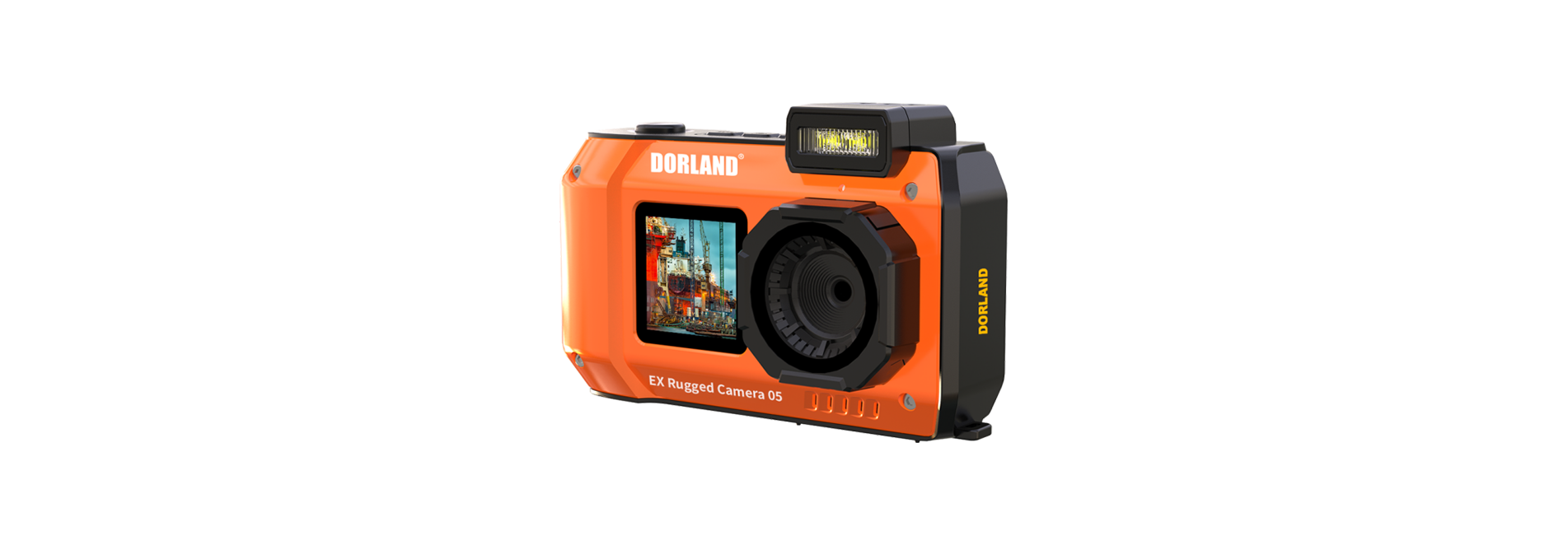

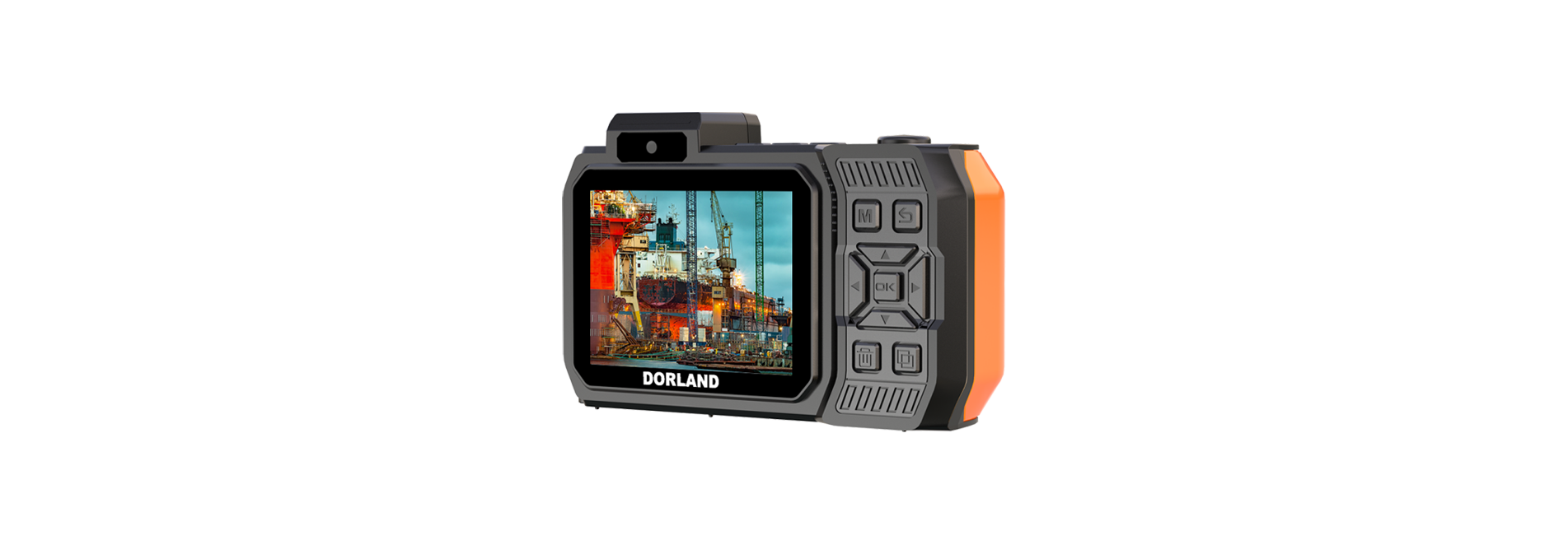

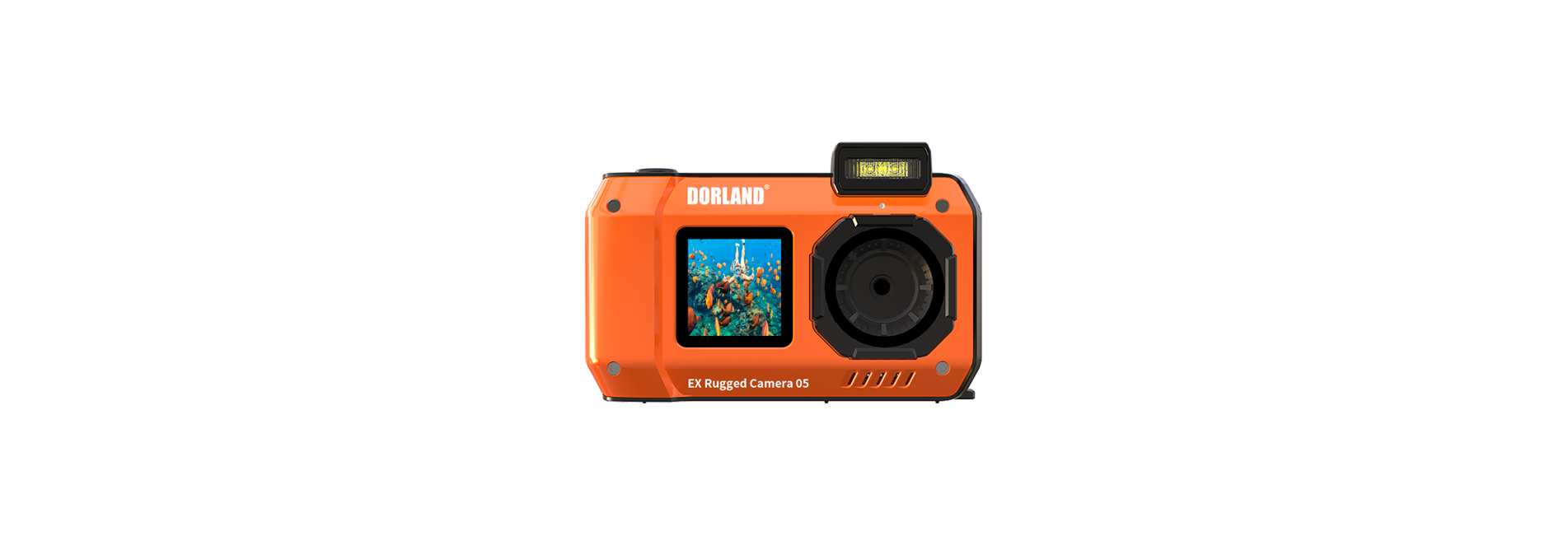

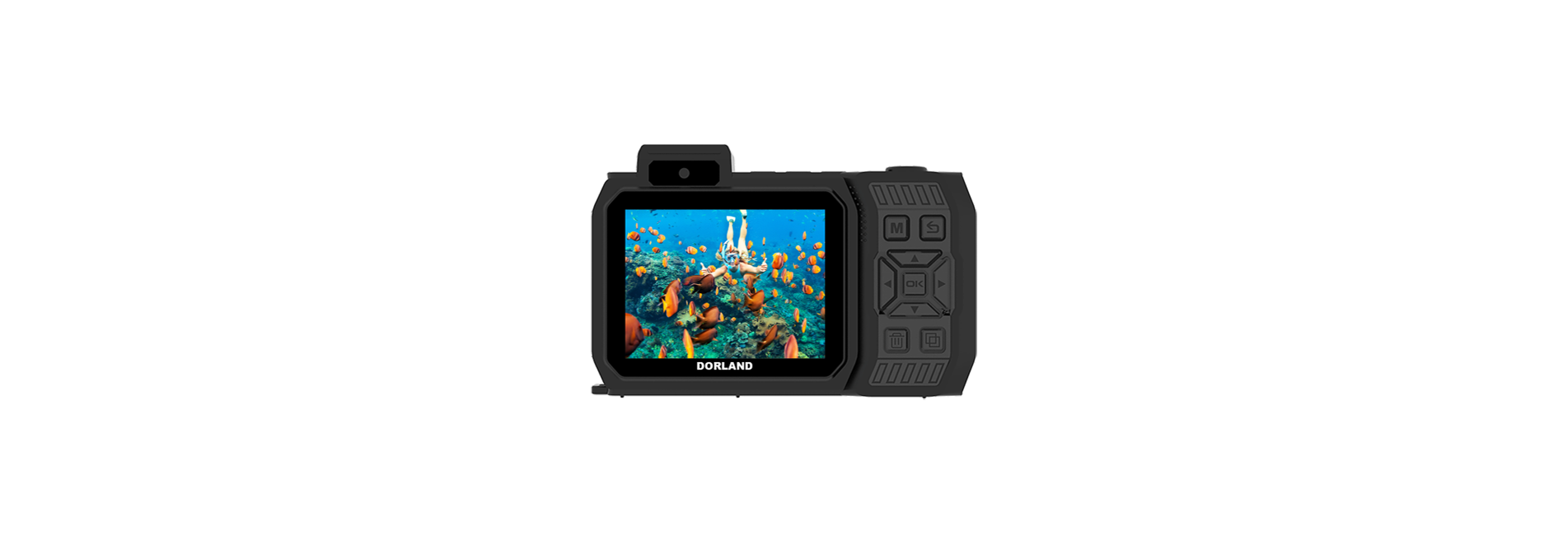

DORLAND Industrial high protection explosion-proof camera with circuit protection control EX Rugged Camera 05

Ex-marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

IP Grade:IP68(5 meters and 30 minutes underwater)

Photo:3/5/8/12/20/24/32/48/64/70M

Video:8K/15 6K/25 5K/30 4K/60 4K/60 2.7K/30 FHD1080/60 1080/30 720/60 720/30

Product Introduction
Technical Parameters

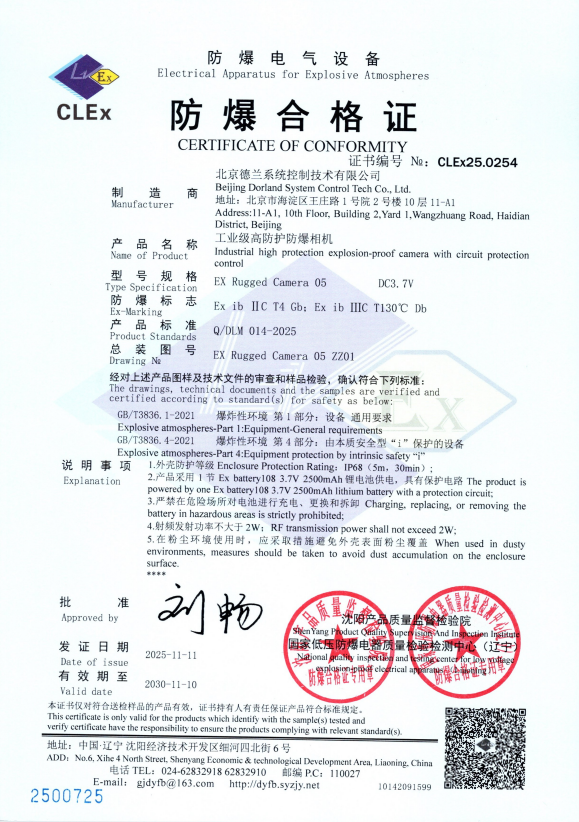

Product Certificate
Product Report

DORLAND System Control Technology Co., Ltd. recently launched Industrial high protection explosion-proof camera with circuit protection control EX Rugged Camera 05, which adopts 13 million pixels, has a digital zoom 18X processor, precise three focusing methods, and presents clear near and far scenes.

In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate NO.:

CLEx25.0254
IP Grade:

IP68( 5 meters and 30 minutes underwater)
Image sensor type:

13 million / IMX258 / 4224*3200
Display screen:

2.88+1.44 inches, 480*640 large screen / 128*128 small screen
File format:

Video: .MOV, Photo: .JPG
Photo resolution:

3/5/8/12/20/24/32/48/64/70M
Video resolution:

8K/15 6K/25 5K/30 4K/60 4K/60 2.7K/30 FHD1080/60 1080/30 720/60 720/30
Video recording mode:

Normal video recording/time-lapse video recording/loop video recording
Photographing mode:

Support
Digital zoom:

Digital zoom 18X
Focusing method:

Fully automatic / semi-automatic / fixed focus
Automatic shutdown:

Off/3/5/8 minutes
Automatic screen saver:

Off/60/90/120S
Image quality:

Ultra HD/HD/Standard
Continuous shooting:

Triple burst/Five burst/Single shot
Battery:

Explosion proof lithium battery 2500mAh, 3.7V
Dimension:

113*41*73mm
Weigh:

251g
