Camera EX05

DORLAND Industrial high protection explosion-proof camera Camera EX05 (ATEX)

ATEX marking:II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135℃ Dc/IP68

IP Grade:IP68 (5m underwater, 30min)

Photo:3/5/8/12/20/24/32/48/64/70M

Video:8K/15 6K/25 5K/30 4K/60 4K/60 2.7K/30 FHD1080/60 1080/30 720/60 720/30

Product Introduction
Technical Parameters
Product Certificate

DORLAND System Control Technology Co., Ltd. recently launched Industrial high protection explosion-proof camera Camera EX05, which adopts 13 million pixels, has a digital zoom 18X processor, precise three focusing methods, and presents clear near and far scenes.

In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

ATEX marking:

II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135℃ Dc/IP68

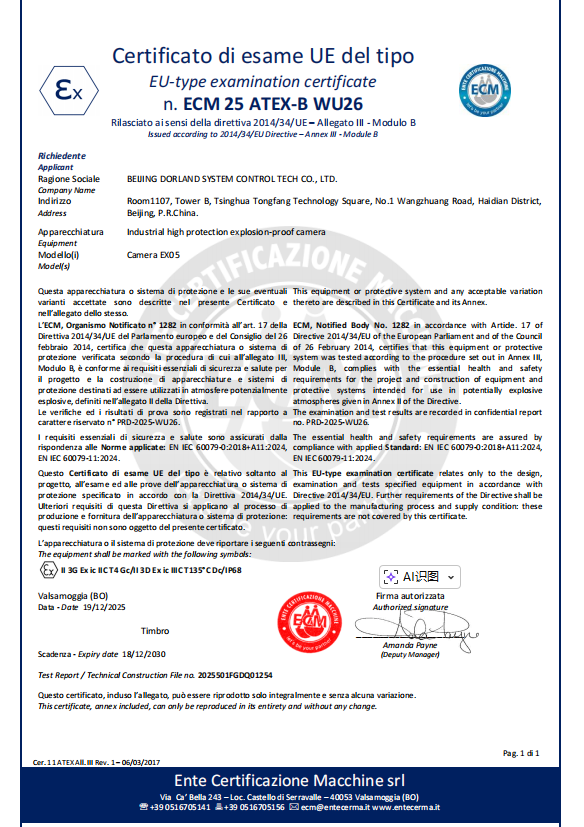

Certificate No.:

ECM 25 ATEX-B WU26
IP Grade:

IP68 (5m underwater, 30min)
Image sensor type:

13 million / IMX258 / 4224*3200
Display screen:

2.88+1.44 inches, 480*640 large screen / 128*128 small screen
File format:

Video: .MOV, Photo: .JPG
Photo resolution:

3/5/8/12/20/24/32/48/64/70M
Video resolution:

8K/15 6K/25 5K/30 4K/60 4K/60 2.7K/30 FHD1080/60 1080/30 720/60 720/30
Video recording mode:

Normal video recording/time-lapse video recording/loop video recording
Photographing mode:

Support
Digital zoom:

Digital zoom 18X
Focusing method:

Fully automatic / semi-automatic / fixed focus
Automatic shutdown:

Off/3/5/8 minutes
Automatic screen saver:

Off/60/90/120S
Image quality:

Ultra HD/HD/Standard
Continuous shooting:

Triple burst/Five burst/Single shot
Battery:

Explosion proof lithium battery 2500mAh, 3.7V
Dimension:

113*41*73mm
Weigh:

251g
