EX Pad 07 4G

DORLAND Industrial Intrinsically Safe Tablet PC/PAD EX Pad 07 4G (ATEX)

ATEX marking:II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135°C Dc/IP67

IP Grade:IP67

OS:Android 15.0 (GMS)

Processor:Qualcomm ® Snapdragon SM6225pro, 8-core, 2.8GHz

Product Introduction
Technical Parameters

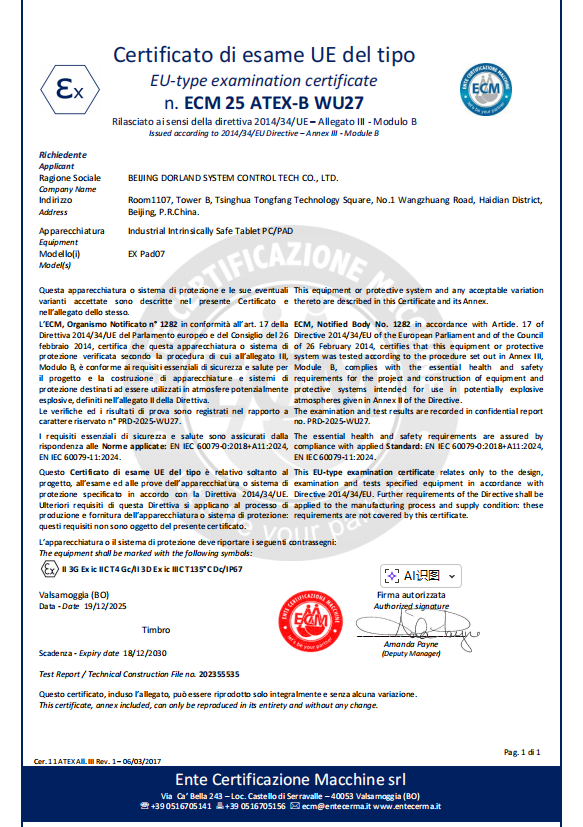

Product Certificate

DORLAND System Control Tech Co., Ltd. has recently launched the intrinsically safe industrial explosion-proof Pad XPad_07 4G, which adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. The PAD adopts an 8.0-inch touch screen design and is equipped with a front 5-megapixel and rear 32 megapixel ultra high definition Sony camera. Its waterproof and dustproof performance meets the international IP67 standard.

In addition, we have also equipped the PAD with various functions suitable for outdoor construction, pipeline inspection, etc., such as Beidou/GPS/Galileo/GLONASS (optional single Beidou satellite positioning module) system, altitude measurement, compass, etc., which can be used in conjunction with OA office system, inspection positioning system, data acquisition system and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

ATEX marking:

II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135°C Dc/IP67
Certificate NO.:

ECM 25 ATEX-B WU27
IP Grade:

IP67
OS:

Android 15 (GMS)
CPU:

Qualcomm ® Snapdragon SM4350 PRO, 8-core 2.2GHz
Screen:

8-inch IPS screen resolution: 1920 * 1200, visible under sunlight at 500nits
Memory:

8GB RAM+128GB ROM
Camera:

Rear camera with 16 megapixel autofocus and flash, front camera with 5 megapixel
Battery capacity:

Standard 3.8V/9000mAh, 34.2Wh, detachable, supports tool free replacement
Frequency bands:

GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B/B19/B26/B66
Dimension:

235mm * 146mm * 13mm
Bluetooth:

Bluetooth 5.1
Wireless:

802.11 a/b/g/n/ac/ax
NFC:

Supports
Sensors:

Accelerometer/light sensor/gyroscope/compass
GPS:

Standard configuration: Four star positioning: Ublox M10N, Beidou/GPS/Galileo/GLONASS; Optional: Single Beidou satellite positioning module, UMD220 (meter level single Beidou), UM980 (centimeter level full satellite), UMD980 (centimeter level single Beidou), F9P (centimeter level full satellite)
Earphone jack:

Type-c
