EX Pad07 4G

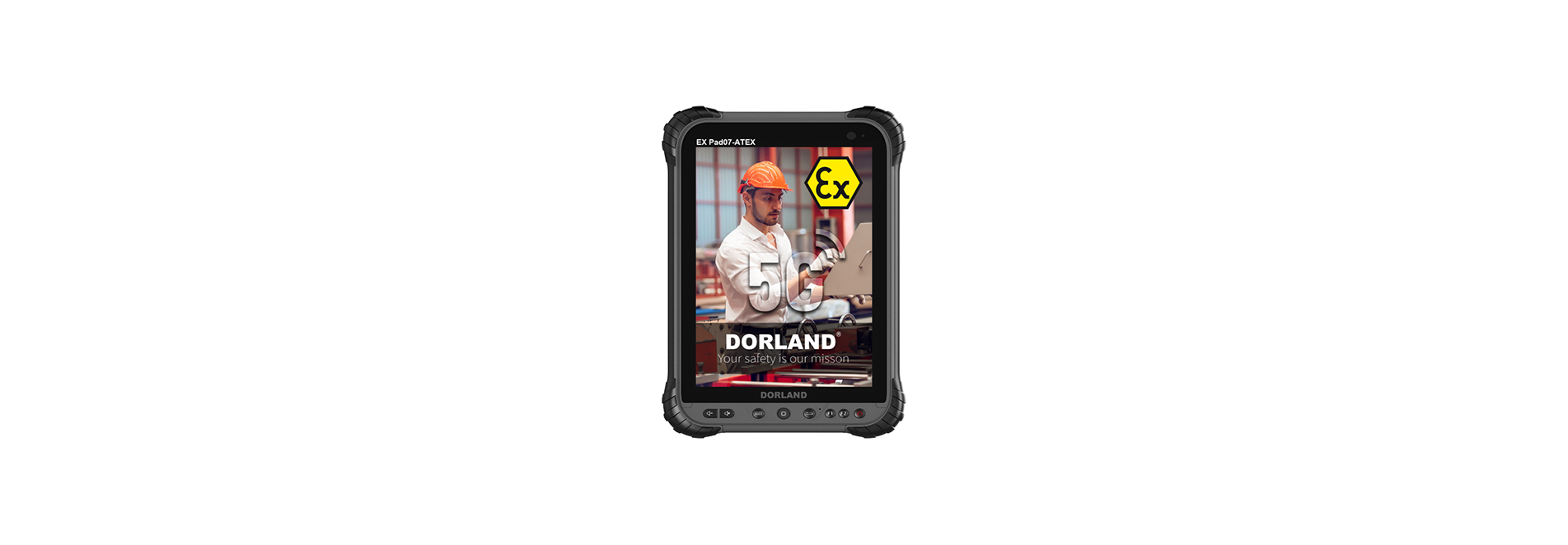

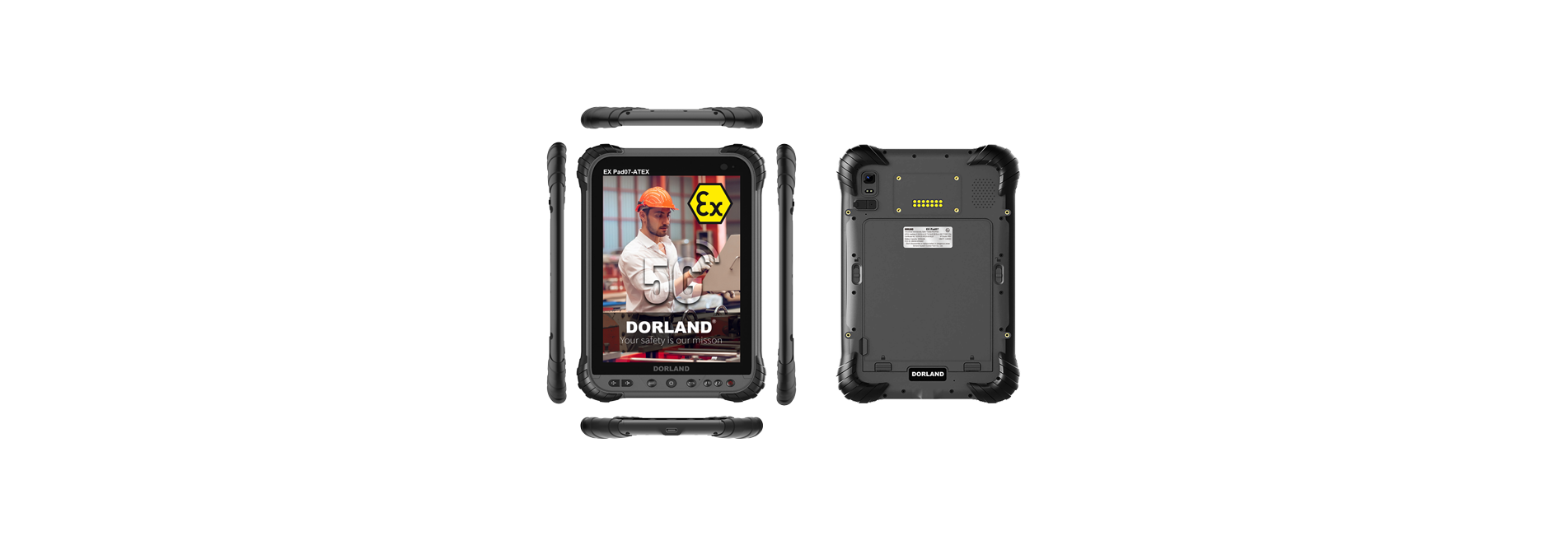

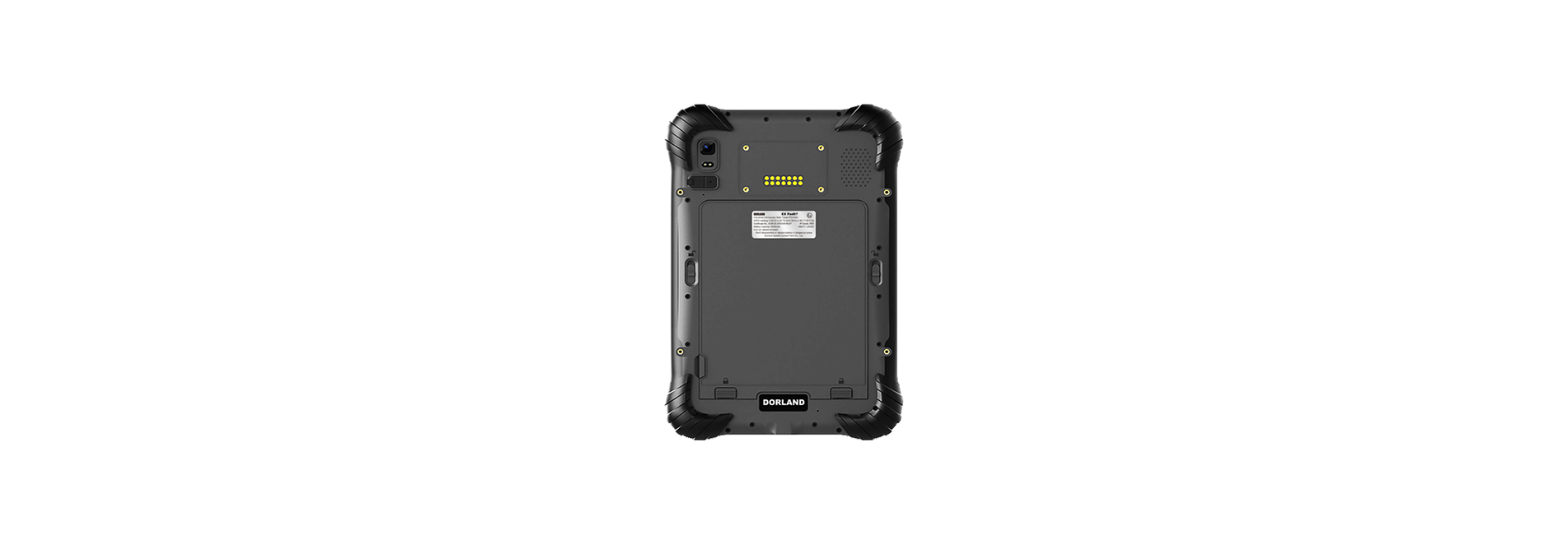

DORLAND Industrial Intrinsically Safe Tablet PC/PAD EX Pad07 4G (ATEX)

ATEX marking:II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135°C Dc/IP67

IP Grade:IP67

OS:Android 15.0 (GMS)

Processor:Qualcomm ® Snapdragon SM6225 8 cores 2.4GHz

Product Introduction
Technical Parameters
Product Certificate

Developed by Beijing Dorland System Control Technology Co., LTD., Industrial Intrinsically Safe Tablet PC/PAD EX Pad 07 4G (ATEX) adopted advanced technology of Germany with intrinsically safe circuit, 8.0” touch screen and 5Megapixel (Front Camera)+32Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards.

In addition, built-in GPS+Beidou+Glonass+Galileo+AGPS+SBAS, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc.. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

ATEX marking:

II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135°C Dc/IP67

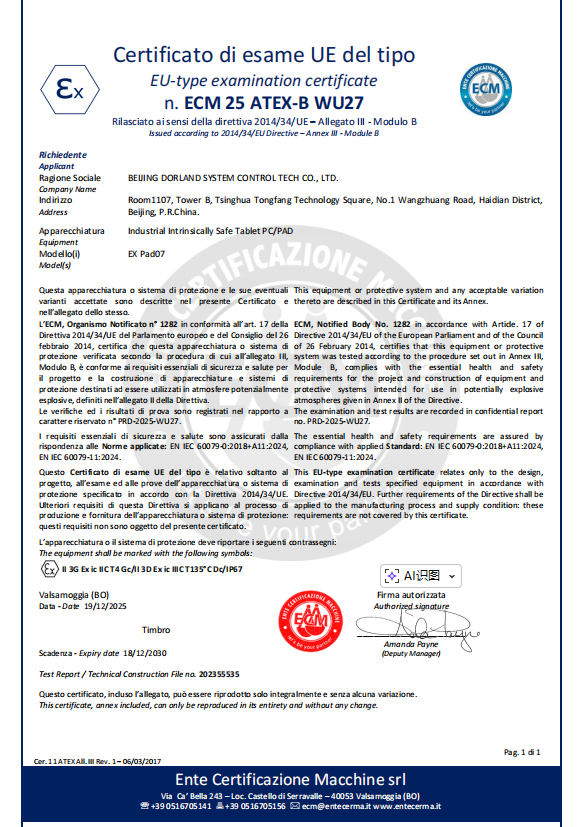

Certificate NO.:

ECM 25 ATEX-B WU27
IP Grade:

IP67
OS:

Android 15.0
CPU:

Qualcomm ® Snapdragon SM6225 4 * A73+4 * A53,8 cores 2.4GHz
Screen:

8-inch IPS screen resolution: 1920 * 1200, visible under sunlight at 500nits
Memory:

8GB/128GB Optional: 8GB/256GB
Camera:

32 megapixel(rear camera) autofocus and flash, 5 megapixel(front camera)
Battery capacity:

Standard 3.8V/9000mAh, 34.2Wh, detachable, supports tool free replacement
Frequency bands:

GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B/B19/B26/B66
Dimension:

235mm * 146mm * 13mm
Bluetooth:

Bluetooth 5.2
Wireless:

802.11 a/b/g/n/ac/ax
NFC:

Supports
Sensors:

Accelerometer/light sensor/gyroscope/compass
GPS:

Standard configuration: Four star positioning: Qualcomm M10N, Beidou/GPS/Galileo/GLONASS
Earphone jack:

Type-c
