iDEN5G_T2G

DORLAND Industrial Intrinsically Safe Handheld Terminal iDEN5G_T2G

Ex-marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Memory:64GB+4GB (standard), 128GB+6GB (optional)

CPU:8-core 2.2GHz high-performance processor

Scanning:Supports 1D/2D barcode scanning

Product Introduction
Technical Parameters
Product Certificate
Product Report

DORLAND System Control Tech Co., Ltd. has recently launched the iDEN5G_T2G, an intrinsically safe, intelligent, and fully network-compatible industrial-grade explosion-proof handheld terminal. Utilizing advanced technology and intrinsically safe circuit design, it boasts an imposing appearance and a sturdy body. Equipped with the Android 12.0 intelligent operating system and a high-performance processor with an eight-core CPU, this product offers robust configuration. It can integrate modules and functions such as 1D/2D barcode scanning, high-definition camera, and GPS positioning, making it suitable for outdoor construction, pipeline inspection, and other tasks. It can also be used in conjunction with various applications such as OA office systems, inspection and positioning systems, and data acquisition systems. Especially suitable for harsh environments prone to danger and explosion, such as petroleum, chemical, pharmaceutical, oil depot, and tank farm areas with flammable and explosive gases, it facilitates timely communication between users and production and scheduling.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

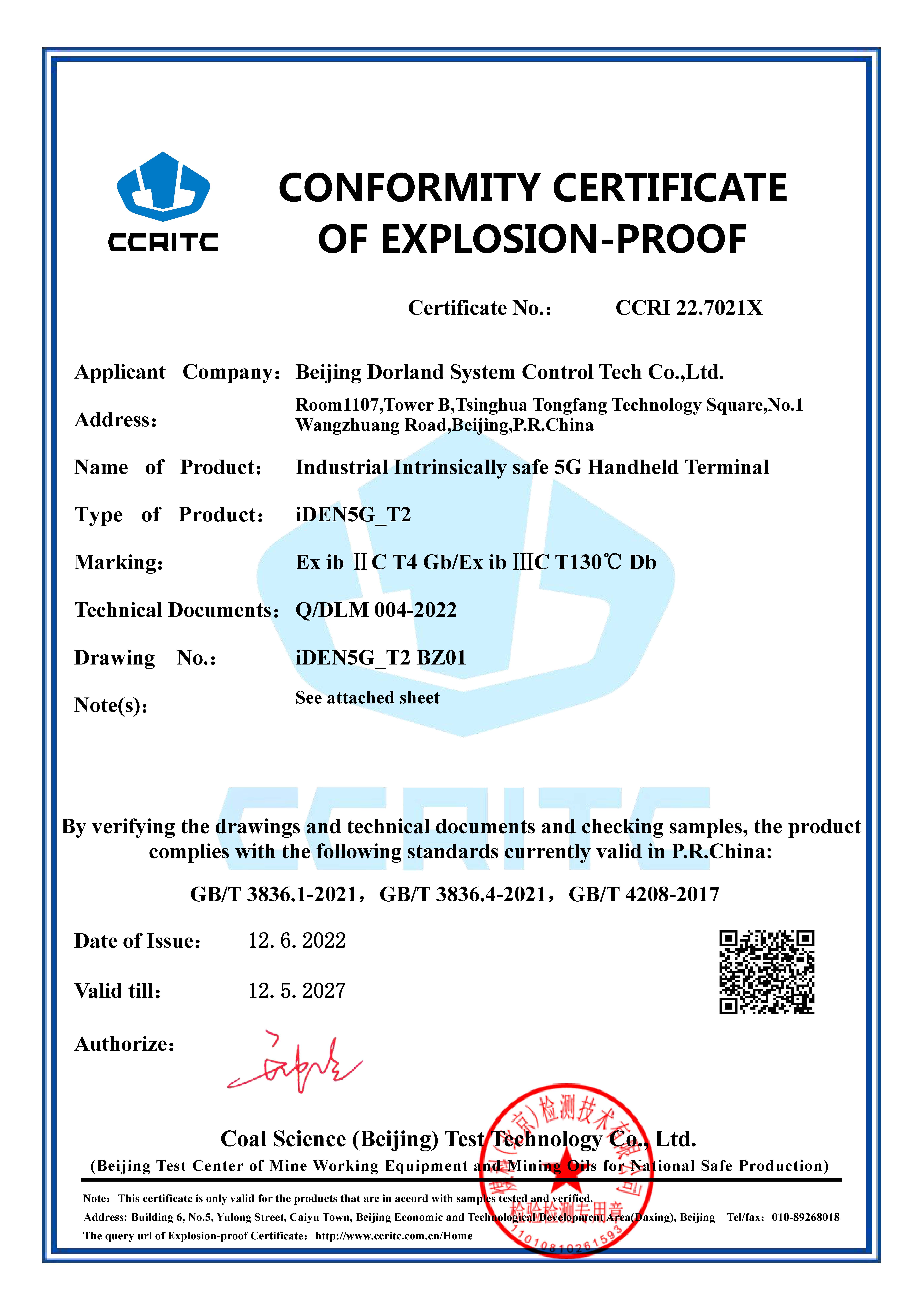

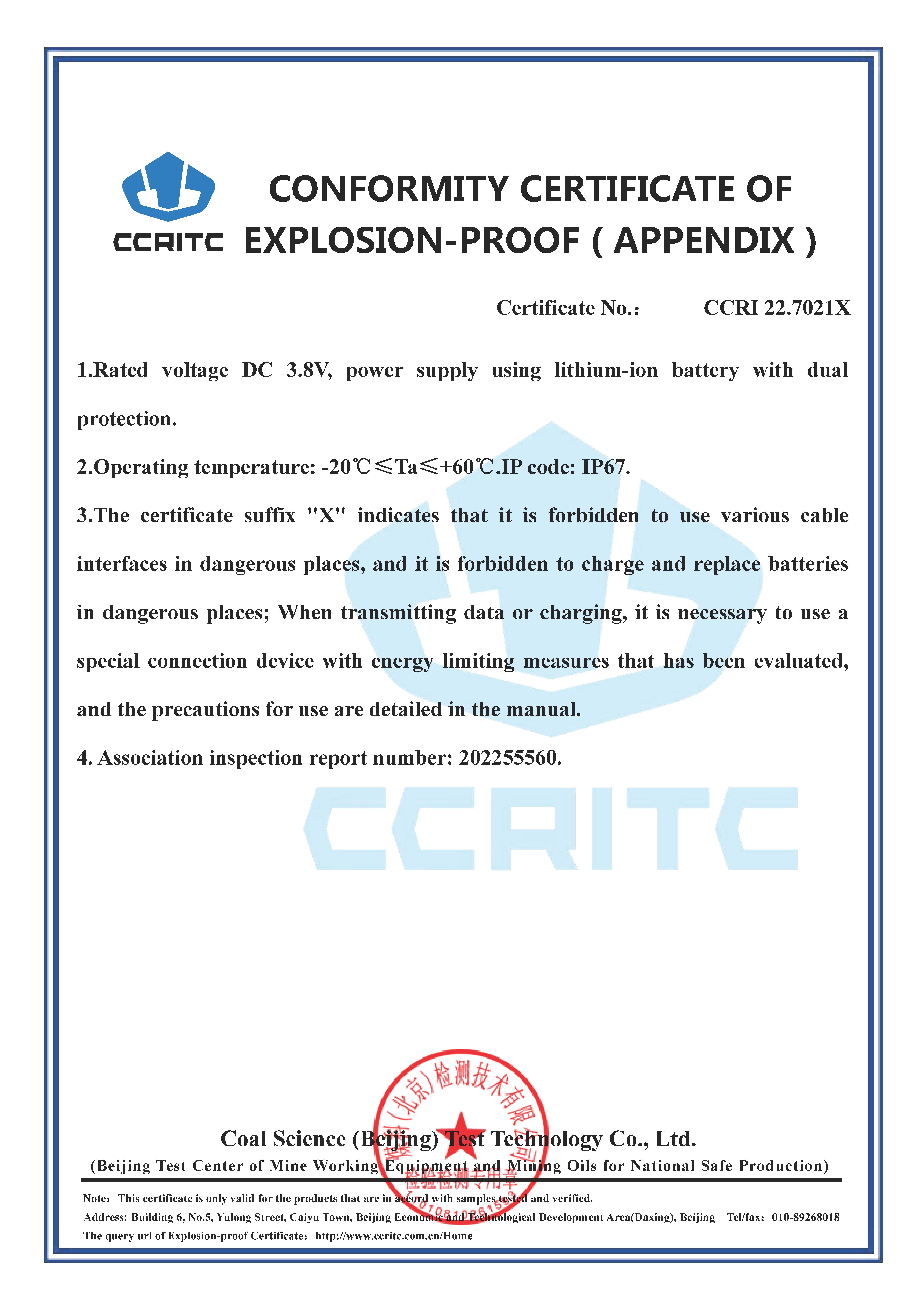

Certificate NO.:

CCRI 22.7021X
IP Grade:

IP67
OS:

Android 12.0
CPU:

8-core 2.2GHz high-performance processor
Screen:

6.21 inches, resolution 1520*720 pixels
Memory:

64GB+4GB (standard), 128GB+6GB (optional)
Camera:

Top-mounted camera 16-megapixel, supporting auto focus/PDAF, 5-megapixel front camera
Bluetooth:

Bluetooth 5.1
Frequency bands:

Domestic & Eurasian versions: 2G:B2/B3/B5/B8 3G:WCDMA:B1/B5/B8 4G:FDD-LTE:B1/B3/B5/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41 FDD-LTE:B1/B3/B5/B7/B8/B20 5G:N1/N3/N7/N28/N38/N41/N77/N78/N79
Scanning:

Supports 1D/2D barcode scanning
Dimension:

168mm*79mm*145mm
Weight:

425g (including battery)
Battery capacity:

3.8V 4500mAh explosion-proof lithium-ion battery, non-removable
