Ex Tablet09 Plus

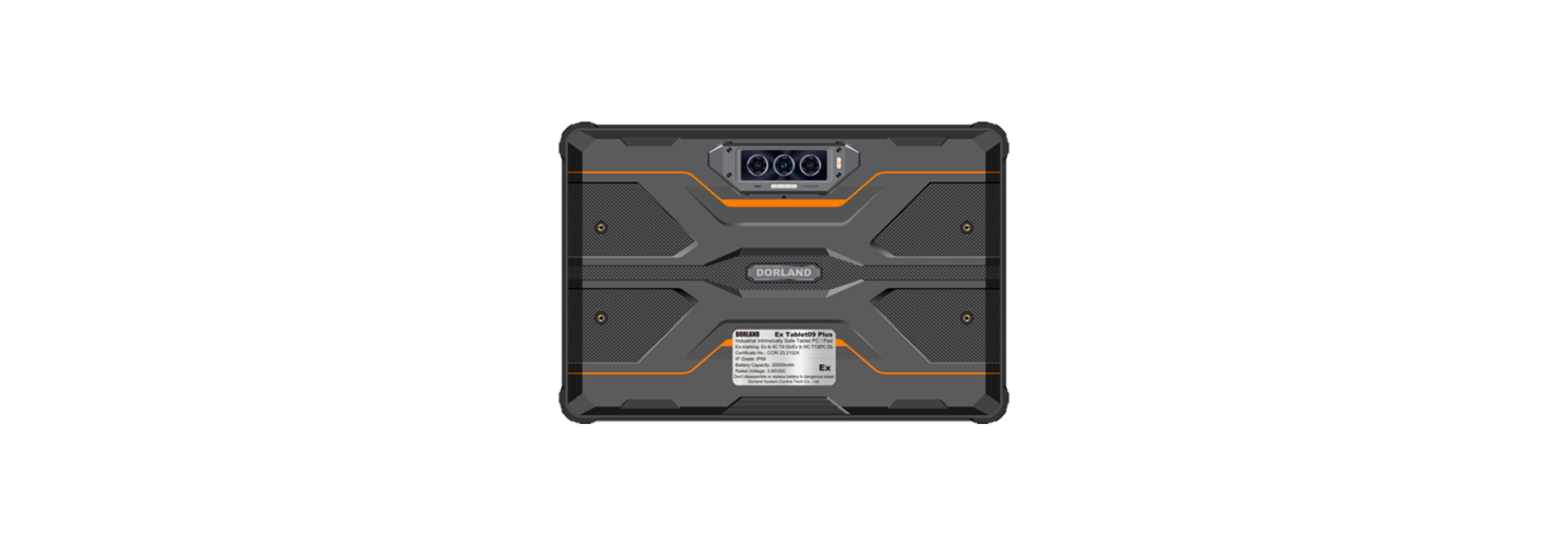

DORLAND Industrial Intrinsically Safe Tablet PC/Pad Ex Tablet09 Plus

Ex-marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db

Screen:11 inches, FHD， Resolution 1200 * 1920

Camera:Front Camera: 32MP Rear camera: 48MP (main camera)+20MP (night vision)+5MP (night vision)

Battery:20000mAh/3.85V

Product Introduction
Technical Parameters

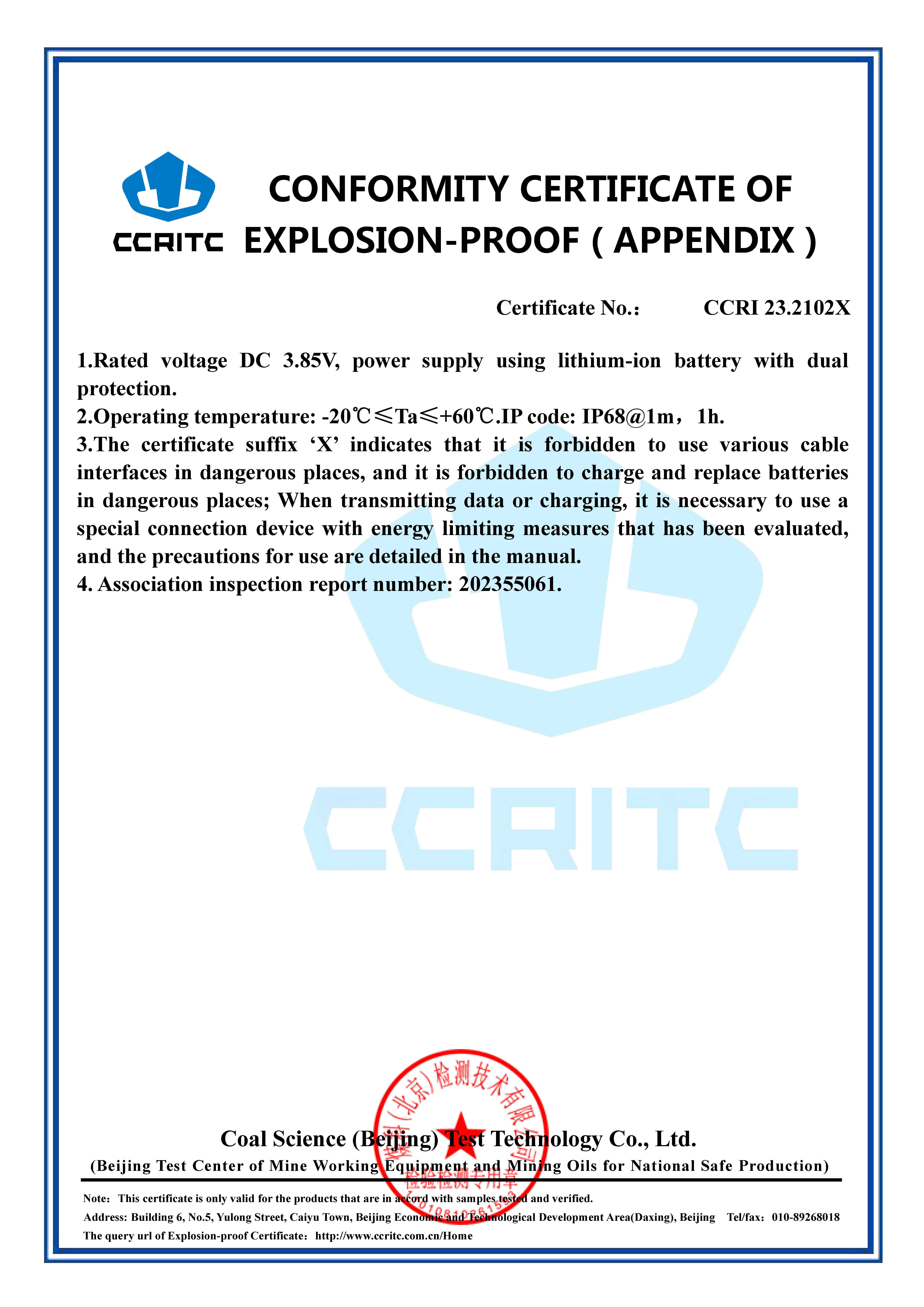

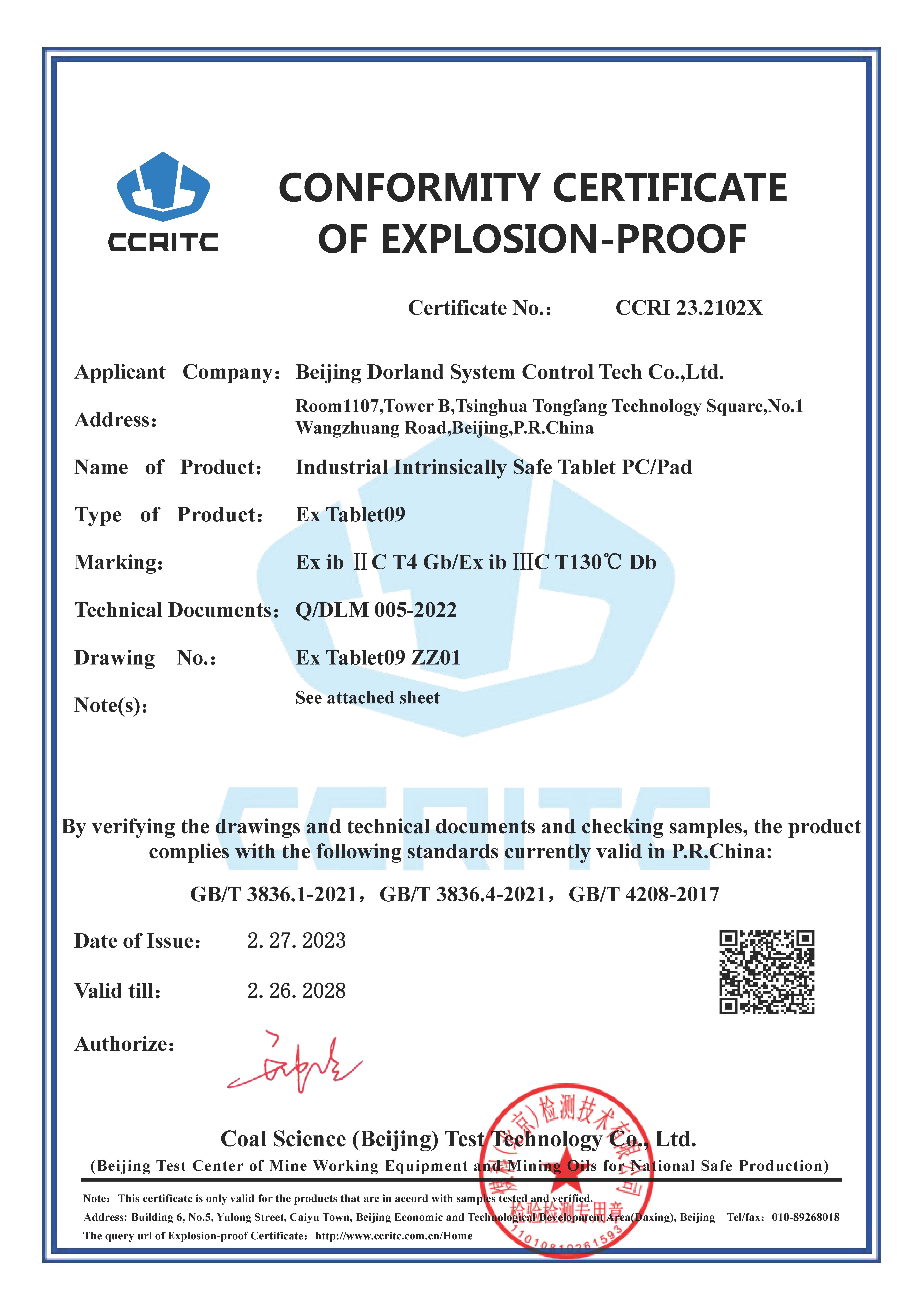

Product Certificate
Product Report

DORLAND System Control Tech Co., Ltd. has recently launched the intrinsically safe intelligent industrial explosion-proof PAD Ex Tablet 09 Plus, which adopts advanced technology, intrinsically safe circuit design, domineering appearance, and sturdy body. This PAD adopts an 11 inch touch screen design and is equipped with a rear triple camera 48MP+20MP+5MP pixel camera. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, we have also equipped various outdoor construction and pipeline inspection functions such as GPS/Beidou/Glonass/Galileo within the PAD, which can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

Ex-marking:

Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:

CCRI 23.2102X
IP Grade:

IP68
OS:

Android 13.0
CPU:

MTK G99 （MT6789）Octa Cores，2*2.2 GHz–Cortex-A76 + 6*2.0 GHz–Cortex-A55
Front Camera:

32MP
Rear camera:

48MP (main camera)+20MP (night vision)+5MP (macro camera)
Screen:

11 inches, FHD， Resolution 1200 * 1920
Memory:

6GB RAM (RAM+additional 6GB expansion)+256GB ROM
TF card:

Supports up to 2TB expansion
Battery:

20000mAh/3.85V
Frequency band:

GSM: B2/B3/B5/B8 CMDA：BC0/BC1/BC10 WCDMA:B1/B2/B4/B5/B6/B8/B19/ FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66 TDD:B34/B38/B39/B40/B41 EDGE/GPRS: Support
GPS:

GPS+Glonass+Beidou+Galileo
Wi-Fi:

802.11 a/b/g/n/ac（2.4G+5G)， Design compatible with ax (WIFI6)
Bluetooth:

BT5.1
NFC:

Support
